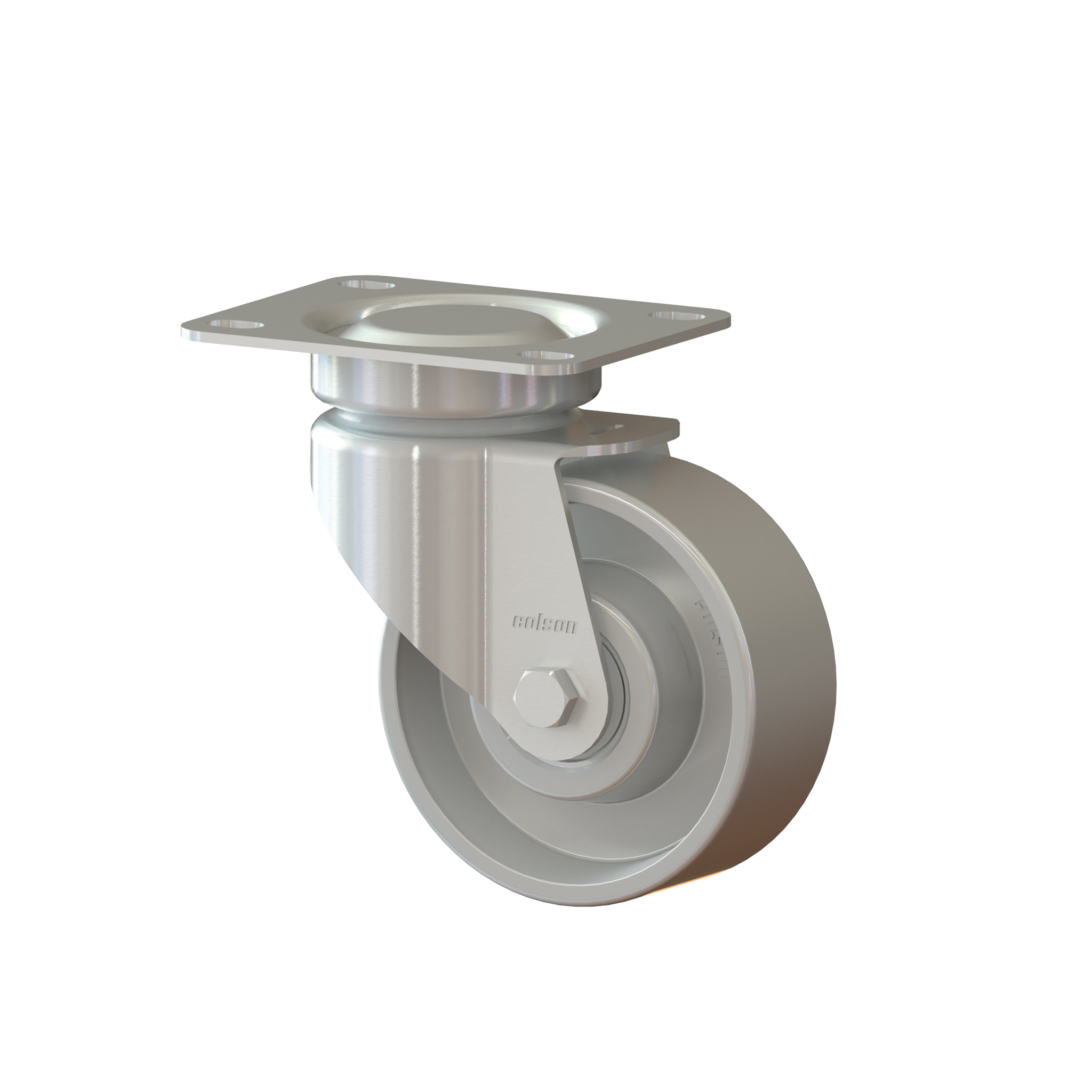

Swivel castor, 100 mm, 240 kg
Part number: JSAN 1002 6150
(High Temperature)
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Height | 130 mm |
| Offset | 40 mm |
| Top plate dimensions | 105x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 240 kg |
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork head with an integrated precision bearing
- grease nipple for lubrication
Wheel
- cast aluminium body
- operating temperature up to +300°C
- double ball
- bearing
