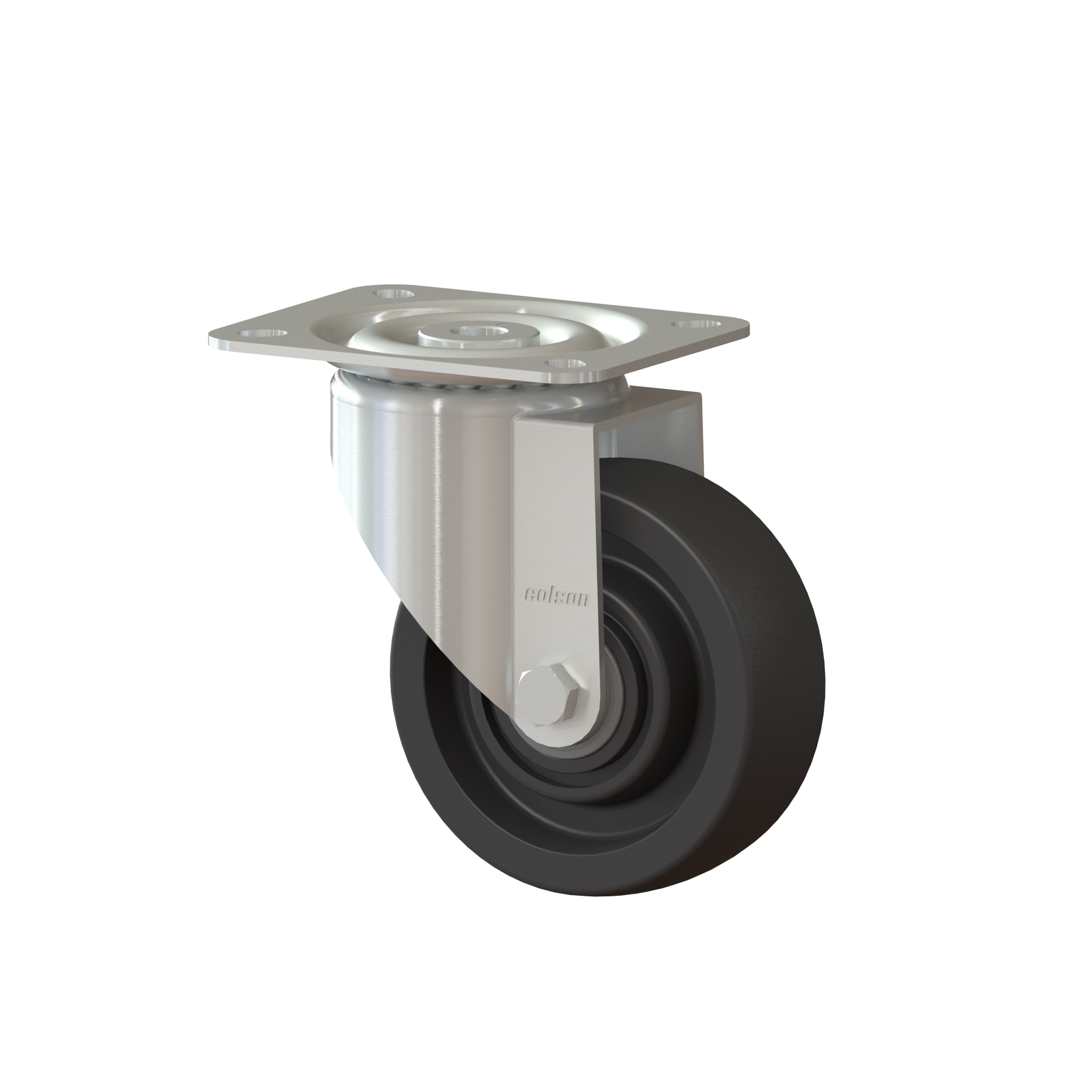

Swivel castor, 100 mm, 170 kg

Part number: I62AZ-HY9T100-GHT
(Veloris High Temperature)

Technical data

Diameter	100 mm
Wheel width	35 mm
Height	128 mm
Offset	34 mm
Top plate dimensions	104x85 mm
Top plate hole diameter	9 mm
Dist. between holes	80x60 mm
Load capacity	170 kg

Technical description

• pressed components made of carbon steel
• protected with an additional
• electro-galvanized zinc coating
• fork headwork with a double ball race bearing



Wheel

• black HT wheel with a hardness of 85 ± 5 Shore D
• operating temperature up to +280°C with short-term peaks up to +300°C (60 seconds)
• double ball bearing
