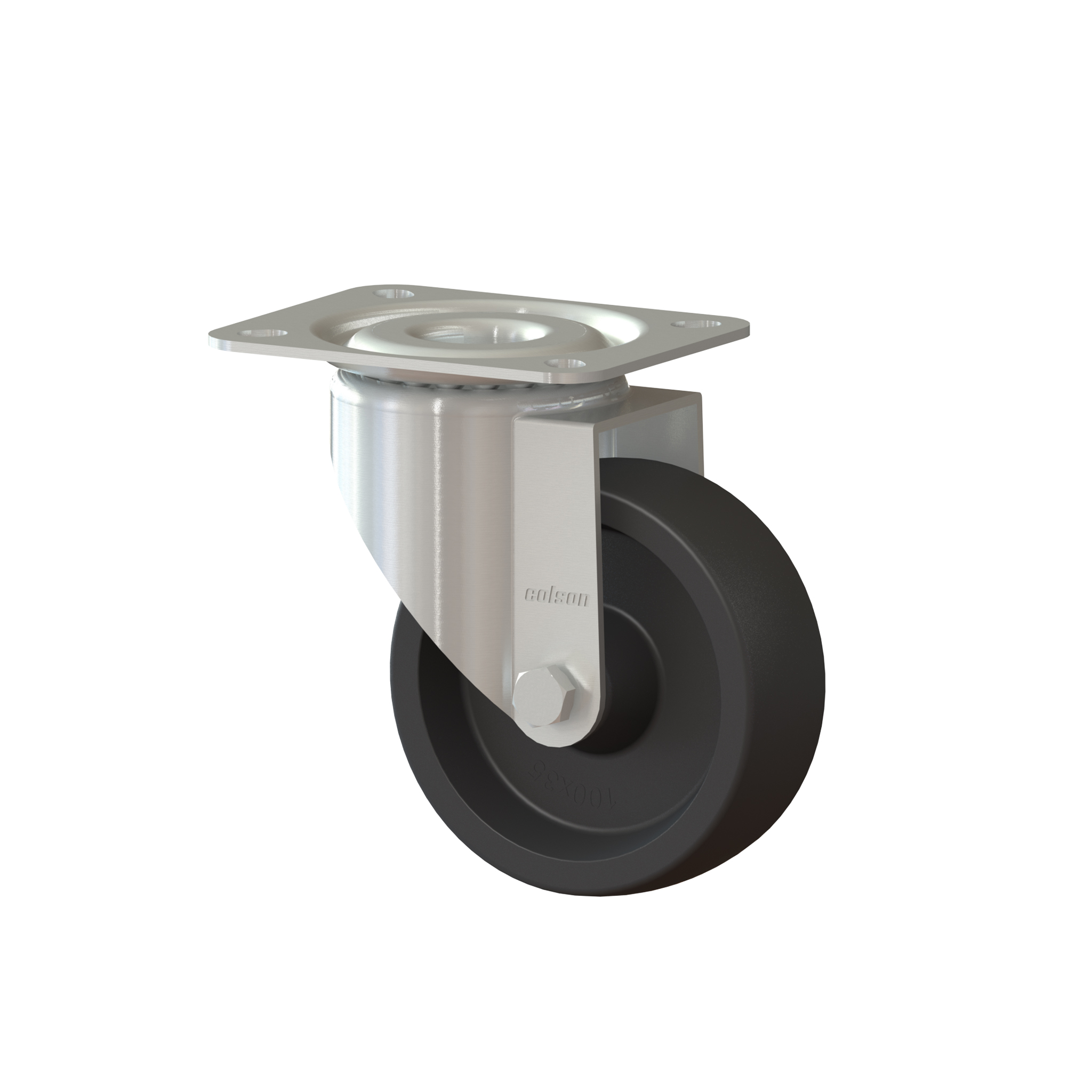

Swivel castor, 80 mm - 100 mm, 150 kg

Part number: JXFL 0802 1000 / D
(High Temperature)

JXFL 0802 1000 / D

Technical data

Diameter 80 mm
Wheel width 35 mm
Height 105 mm
Offset 34 mm
Top plate dimensions 105x85 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Load capacity 150 kg

Technical description

  • pressed components made of stainless steel (AISI 304)
  • fork headwork
  • with a double ball race bearing



Wheel

  • black HT wheel with a hardness of 85 ± 5 Shore D
  • operating
  • temperature up to +280°C with short-term peaks up to +300°C (60 seconds)
  • plain bearing.

Variants

Diameter Wheel width Height Offset Top plate dimensions Top plate hole diameter Dist. between holes Load capacity
JXFL 0802 1000 / D 80 mm 35 mm 105 mm 34 mm 105x85 mm 9 mm 80x60 mm 150 kg
JXFL 1002 1000 / D 100 mm 35 mm 128 mm 34 mm 105x85 mm 9 mm 80x60 mm 150 kg
Reach compliant
Map
Rohs compliant
