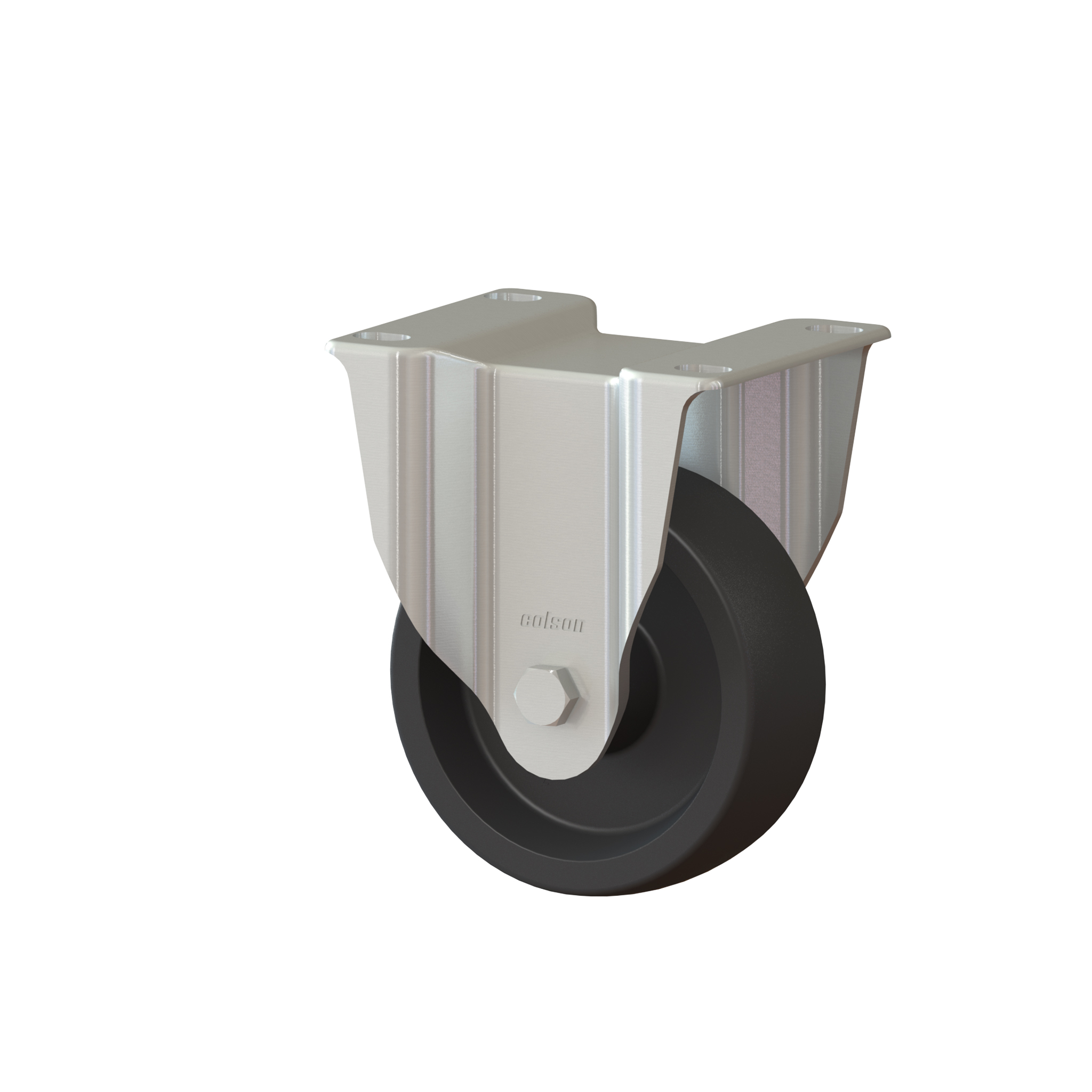

Fixed castor, 80 mm - 100 mm, 190 kg

Part number: FSFL 0802 1000 / D
(High Temperature)

Technical data

Diameter	80 mm
Wheel width	35 mm
Height	110 mm
Top plate dimensions	105x85 mm
Top plate hole diameter	9 mm
Dist. between holes	80x60 mm
Load capacity	190 kg

Technical description

• pressed components made of carbon steel protected with an additional electro-galvanized zinc coating



Wheel

• black HT wheel with a hardness of 85 ± 5 Shore D
• operating
• temperature up to +280°C with short-term peaks up to +300°C (60 seconds)
• plain bearing.
