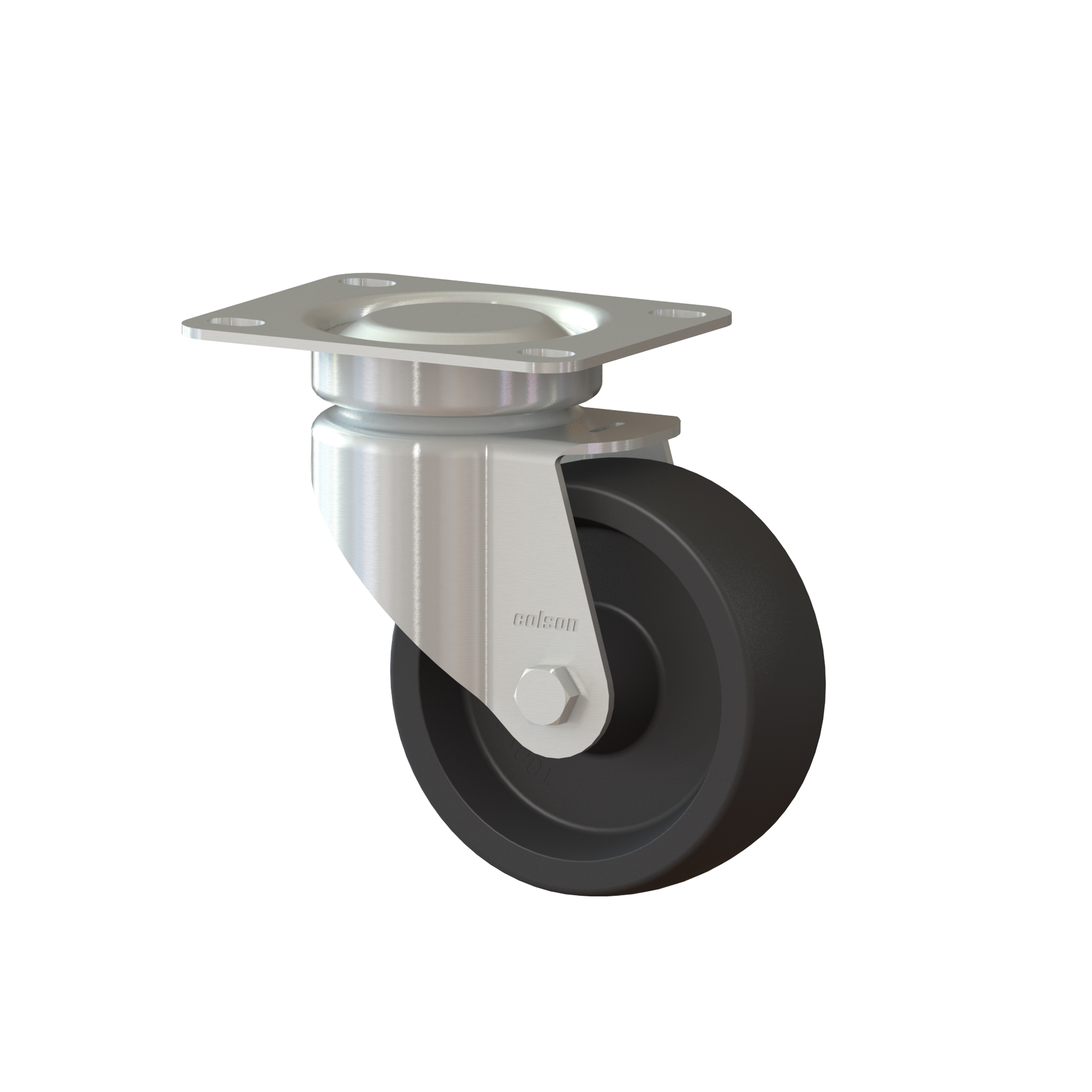

Swivel castor, 80 mm - 100 mm, 190 kg

Part number: JSFL 0802 1000 / D
(High Temperature)

Technical data

Diameter	80 mm
Wheel width	35 mm
Height	110 mm
Offset	35 mm
Top plate dimensions	105x85 mm
Top plate hole diameter	9 mm
Dist. between holes	80x60 mm
Load capacity	190 kg

Technical description

• pressed components made of carbon steel
• protected with an additional
• electro-galvanized zinc coating
• fork head with an integrated precision bearing
• grease nipple for lubrication



Wheel

• black HT wheel with a hardness of 85 ± 5 Shore D
• operating
• temperature up to +280°C with short-term peaks up to +300°C (60 seconds)
• plain bearing.
