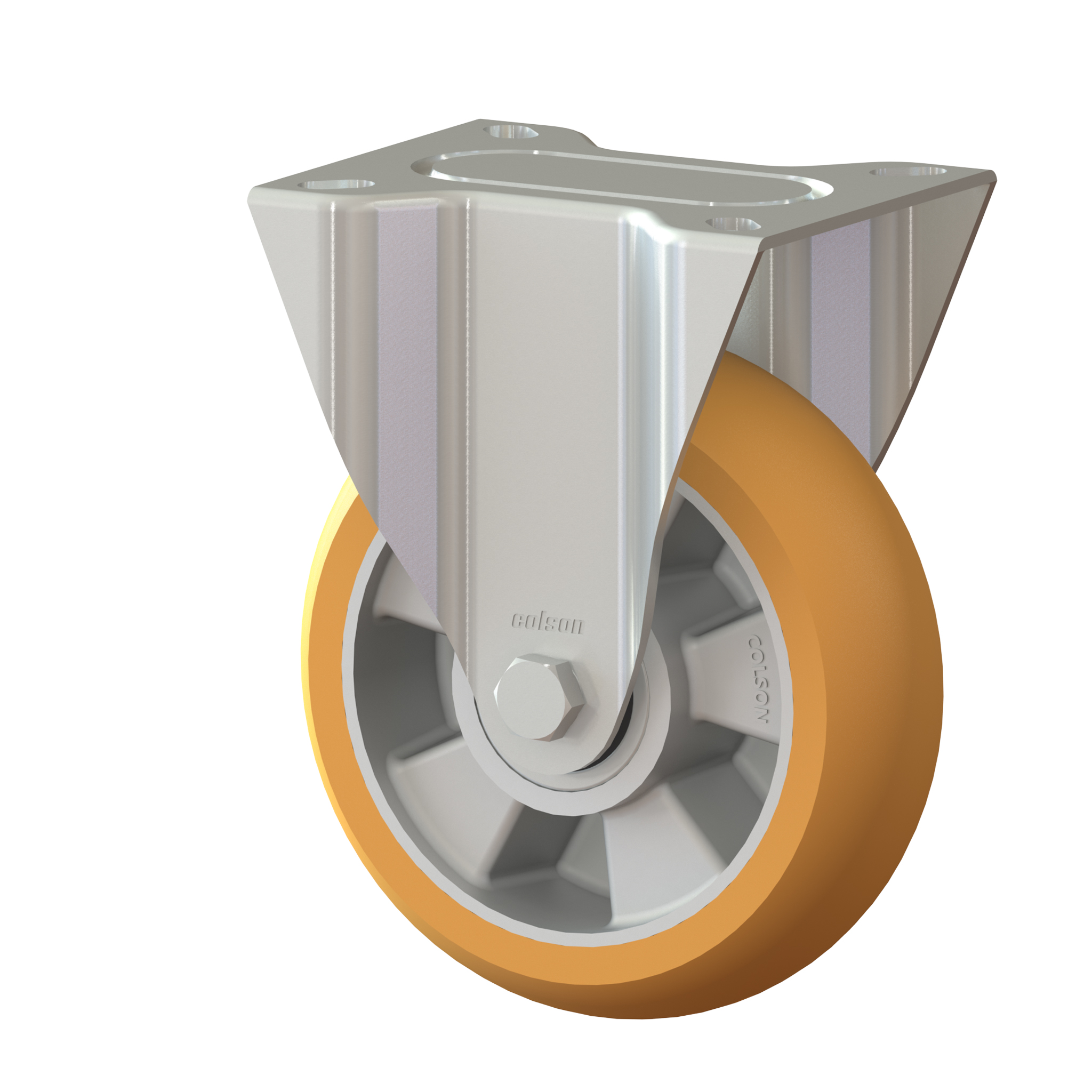

Fixed castor, 160 mm - 200 mm, 400 kg
Part number: I63AZ-CT0T160
(Veloris)
Technical data
| Diameter | 160 mm |
| Wheel width | 51 mm |
| Height | 195 mm |
| Top plate dimensions | 135x110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105x80 mm |
| Load capacity | 400 kg |
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
Wheel
- die-cast aluminium hub
- wheel tread cast polyurethane CG-MAX in
- orange color
- with a hardness of 85 +/- 5 Shore A
- rounded tread profile
- double
- ball bearing
Variants
|
Diameter |
Wheel width |
Height |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Load capacity |
| I63AZ-CT0T160 |
160 mm |
51 mm |
195 mm |
135x110 mm |
11 mm |
105x80 mm |
400 kg |
| I63AZ-CT0T200 |
200 mm |
51 mm |
238 mm |
135x110 mm |
11 mm |
105x80 mm |
400 kg |
