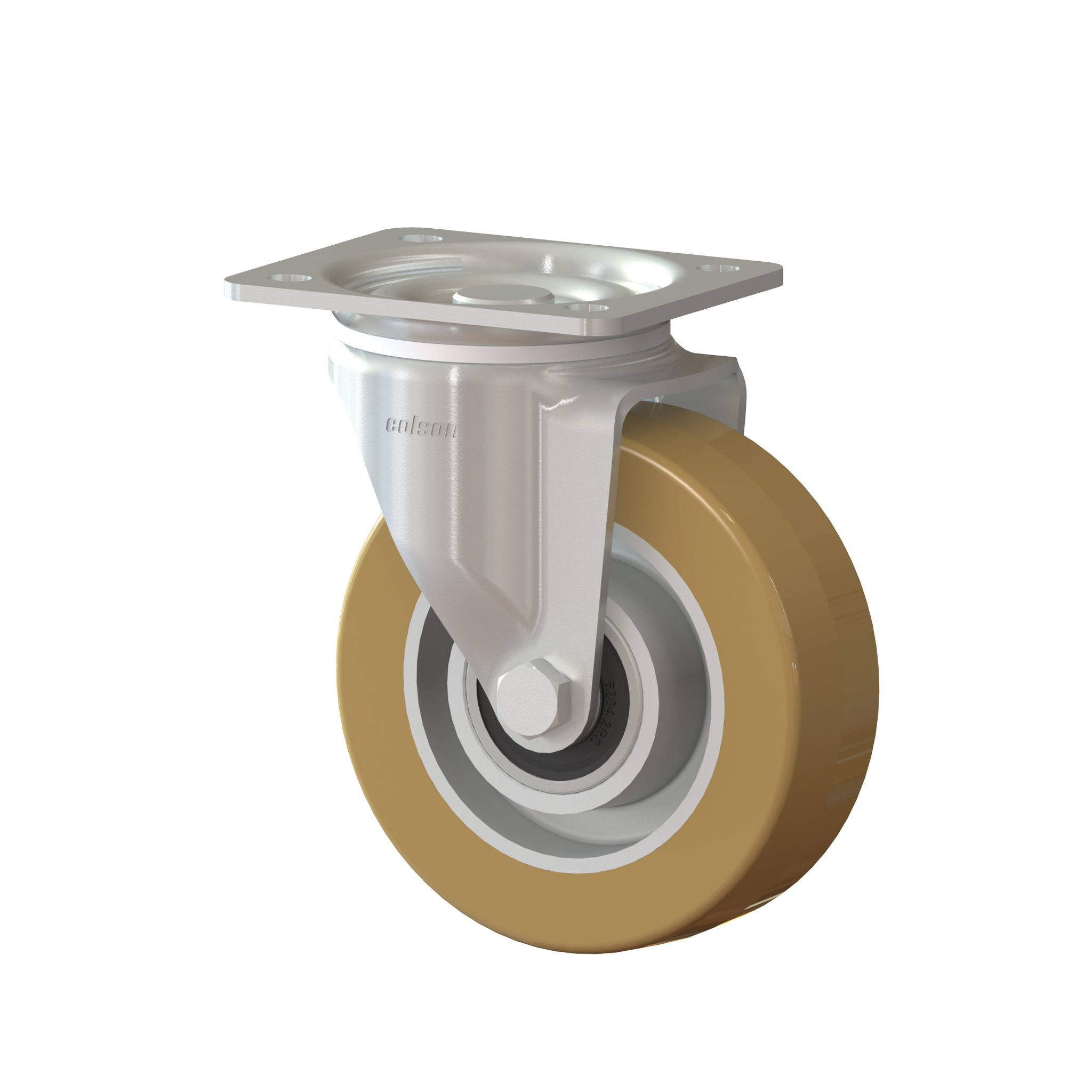

Swivel castor, 100 mm - 125 mm, 250 kg - 300 kg

Part number: I32AZ-XM0T100-C04
(Elite)

Technical data

Diameter 100 mm
Wheel width 40 mm
Height 128 mm
Offset 27,5 mm
Top plate dimensions 105x86 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Load capacity 250 kg

Technical description

  • pressed components made of carbon steel
  • protected with an additional
  • electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • die-cast aluminium hub
  • wheel tread made of cast polyurethane in
  • honey-brown color
  • with a hardness of 95 +/- 5 Shore A
  • double ball bearing
  • *On request: antistatic version or soft tread 75 +/- 5 Shore A available.

Variants

Diameter Wheel width Height Offset Top plate dimensions Top plate hole diameter Dist. between holes Load capacity
I32AZ-XM0T100-C04 100 mm 40 mm 128 mm 27,5 mm 105x86 mm 9 mm 80x60 mm 250 kg
I32AZ-XM0T125-C04 125 mm 40 mm 154 mm 27,5 mm 105x86 mm 9 mm 80x60 mm 300 kg
JTAU 1253 6440 125 mm 40 mm 156 mm 42,5 mm 135x110 mm 11 mm 105x80 mm 300 kg
Reach compliant
Map
Rohs compliant
