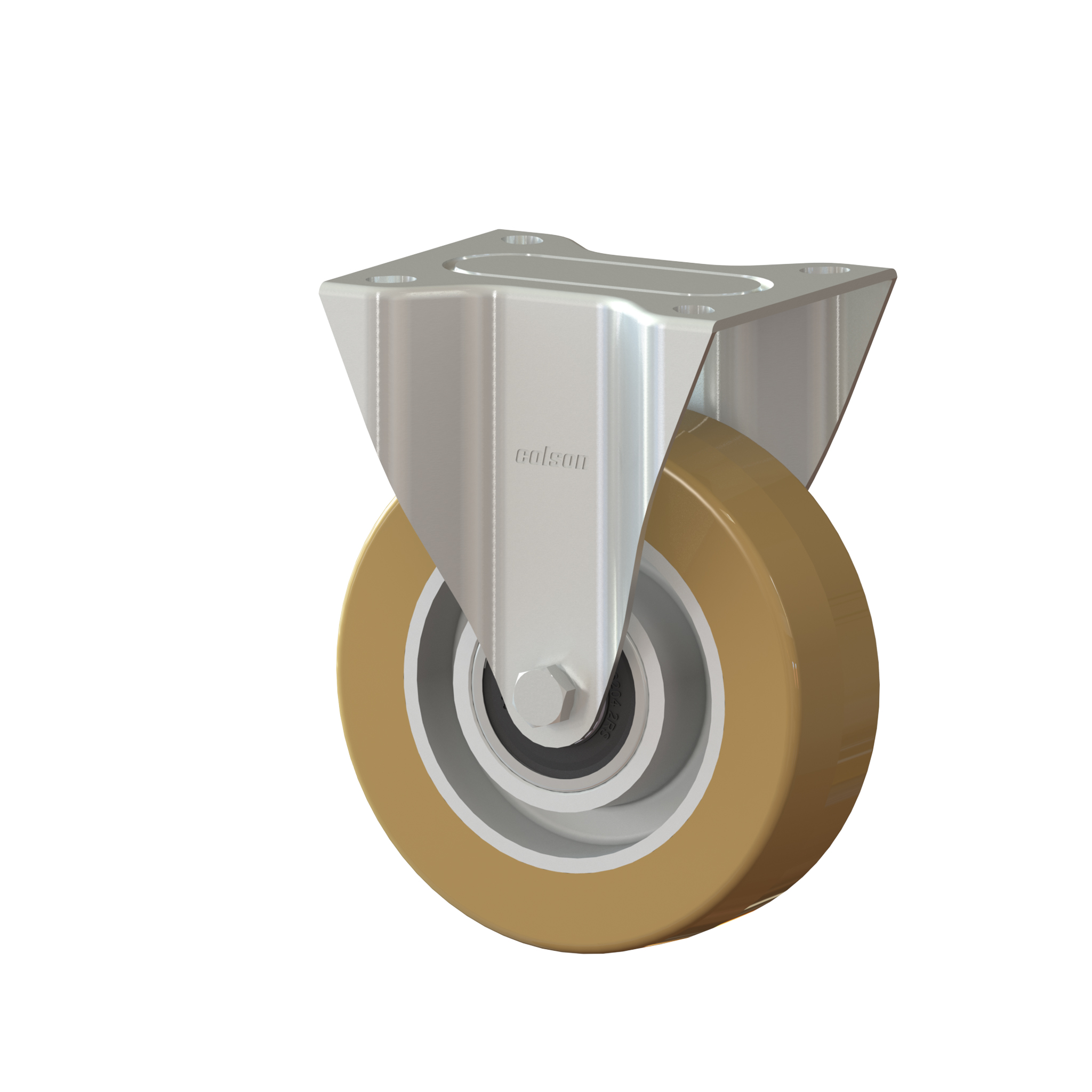

Fixed castor, 100 mm - 200 mm, 150 kg - 400 kg
Part number: I63AZ-XM9T100-C04
(Veloris)
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Height | 128 mm |
| Top plate dimensions | 104x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 150 kg |
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
Wheel
- die-cast aluminium hub
- wheel tread made of cast polyurethane in
- honey-brown color
- with a hardness of 95 +/- 5 Shore A
- double ball bearing
- *On request: antistatic version or soft tread 75 +/- 5 Shore A available.
Variants
|
Diameter |
Wheel width |
Height |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Load capacity |
| I63AZ-XM9T100-C04 |
100 mm |
40 mm |
128 mm |
104x85 mm |
9 mm |
80x60 mm |
150 kg |
| I63AZ-XM9T160-C04 |
160 mm |
50 mm |
195 mm |
135x110 mm |
11 mm |
105x80 mm |
400 kg |
| I63AZ-XM9T200-C04 |
200 mm |
50 mm |
235 mm |
135x110 mm |
11 mm |
105x80 mm |
400 kg |
