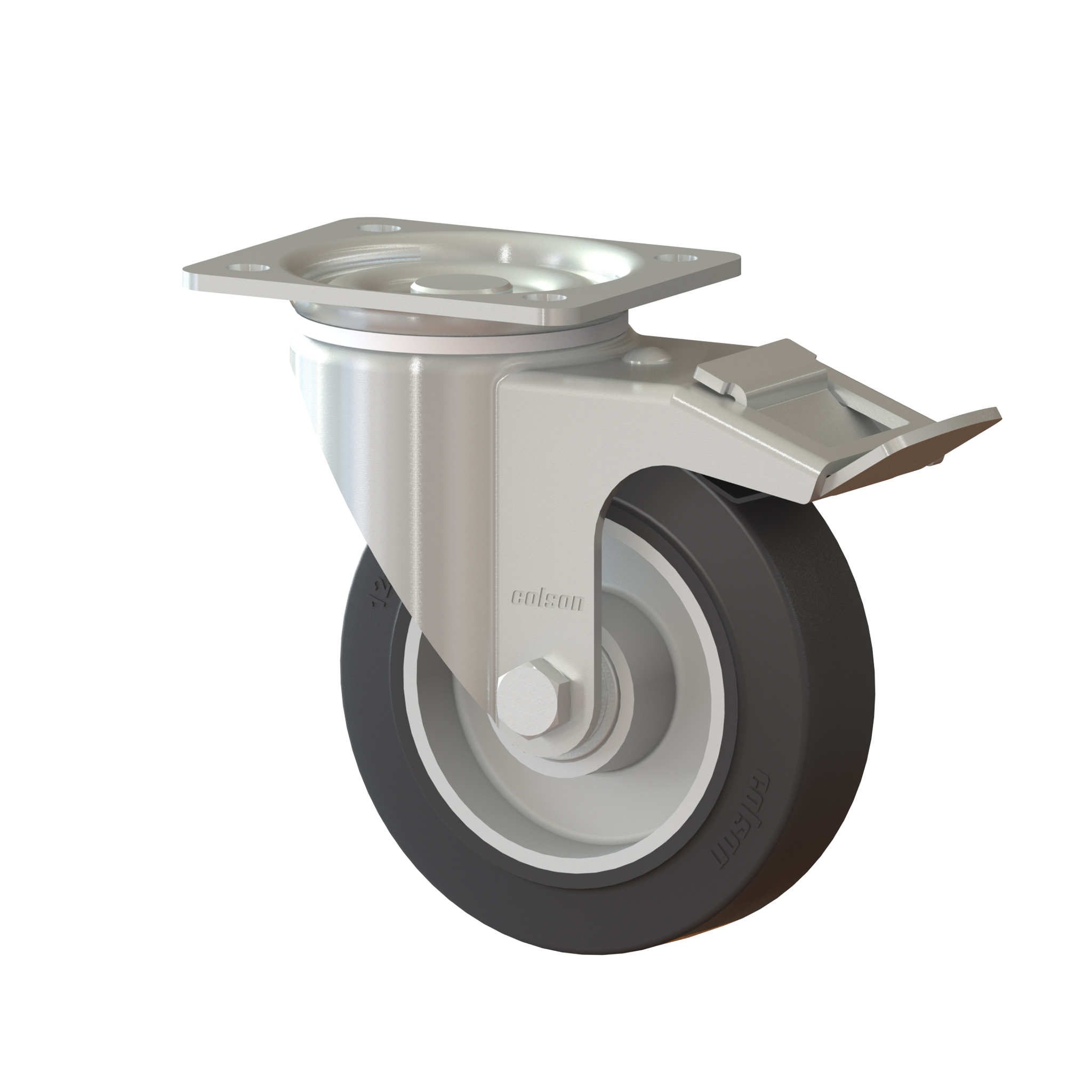

Swivel castor with total brake mounted behind, 100 mm - 125 mm, 180 kg - 200 kg

Part number: I32TZ-BM8T100
(Elite)

Technical data

Diameter	100 mm
Wheel width	40 mm
Height	125 mm
Offset	27,5 mm
Top plate dimensions	105x86 mm
Top plate hole diameter	9 mm
Dist. between holes	80x60 mm
Brake swivel radius	133 mm
Load capacity	180 kg

Technical description

• pressed components made of carbon steel
• protected with an additional
• electro-galvanized zinc coating
• fork headwork with a double ball race bearing



Wheel

• die-cast aluminium hub
• wheel tread made of natural rubber in black
• color
• with a hardness of 67 +/- 5 Shore A
• double ball bearing
• *On request: antistatic version or grey tread available.
