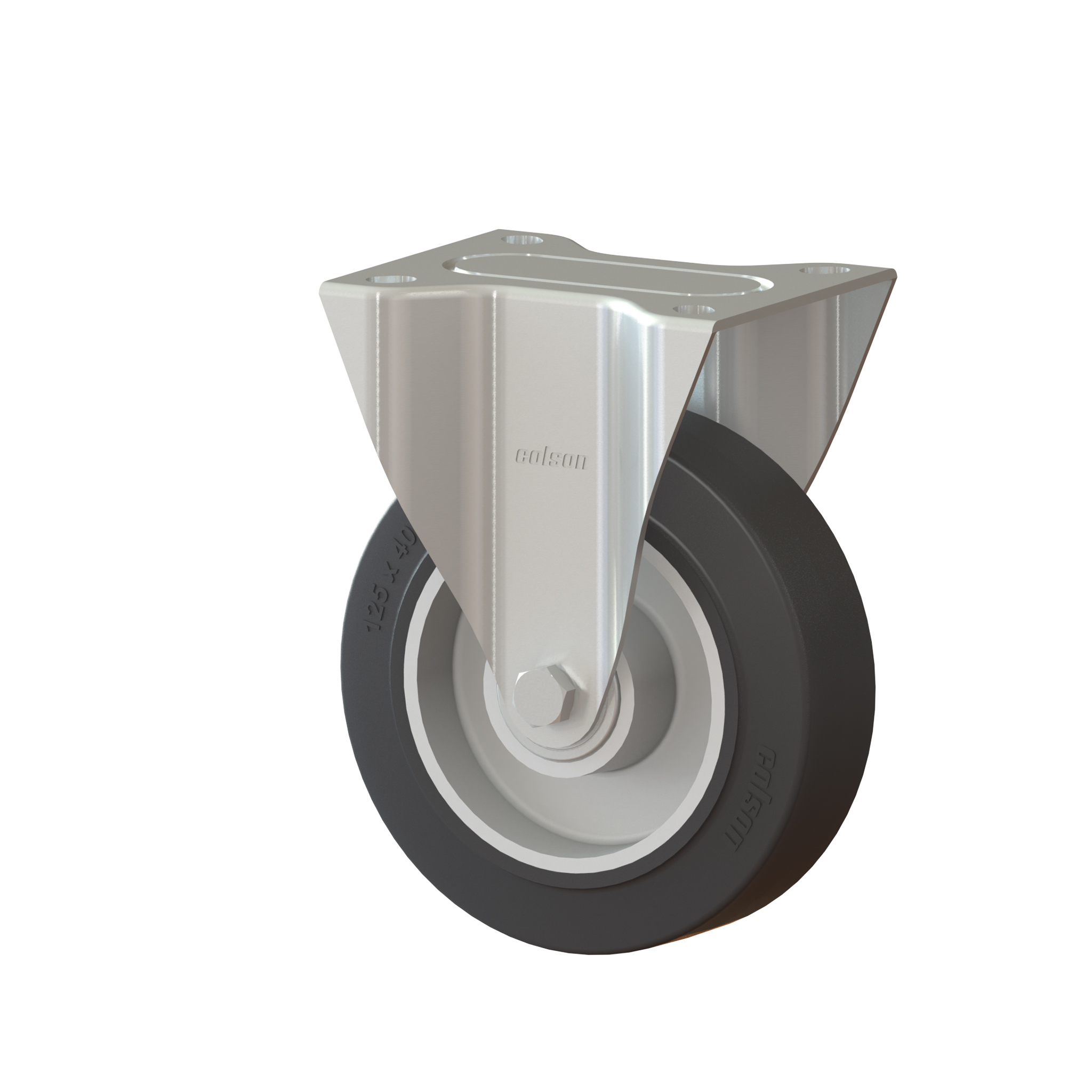

Fixed castor, 100 mm - 200 mm, 150 kg - 400 kg

Part number: I63AZ-BM7T100
(Veloris)

I63AZ-BM7T100

Technical data

Diameter 100 mm
Wheel width 40 mm
Height 128 mm
Top plate dimensions 104x85 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Load capacity 150 kg

Technical description

  • pressed components made of carbon steel protected with an additional electro-galvanized zinc coating



Wheel

  • die-cast aluminium hub
  • wheel tread made of natural rubber in black
  • color
  • with a hardness of 67 +/- 5 Shore A
  • double ball bearing
  • *On request: antistatic version or grey tread available.

Variants

Diameter Wheel width Height Top plate dimensions Top plate hole diameter Dist. between holes Load capacity
I63AZ-BM7T100 100 mm 40 mm 128 mm 104x85 mm 9 mm 80x60 mm 150 kg
I63AZ-BM7T125 125 mm 38 mm 156 mm 104x85 mm 9 mm 80x60 mm 150 kg
I63AZ-BM7T160 160 mm 50 mm 195 mm 135x110 mm 11 mm 105x80 mm 300 kg
I63AZ-BM7T200 200 mm 50 mm 235 mm 135x110 mm 11 mm 105x80 mm 400 kg
Reach compliant
Map
Rohs compliant
