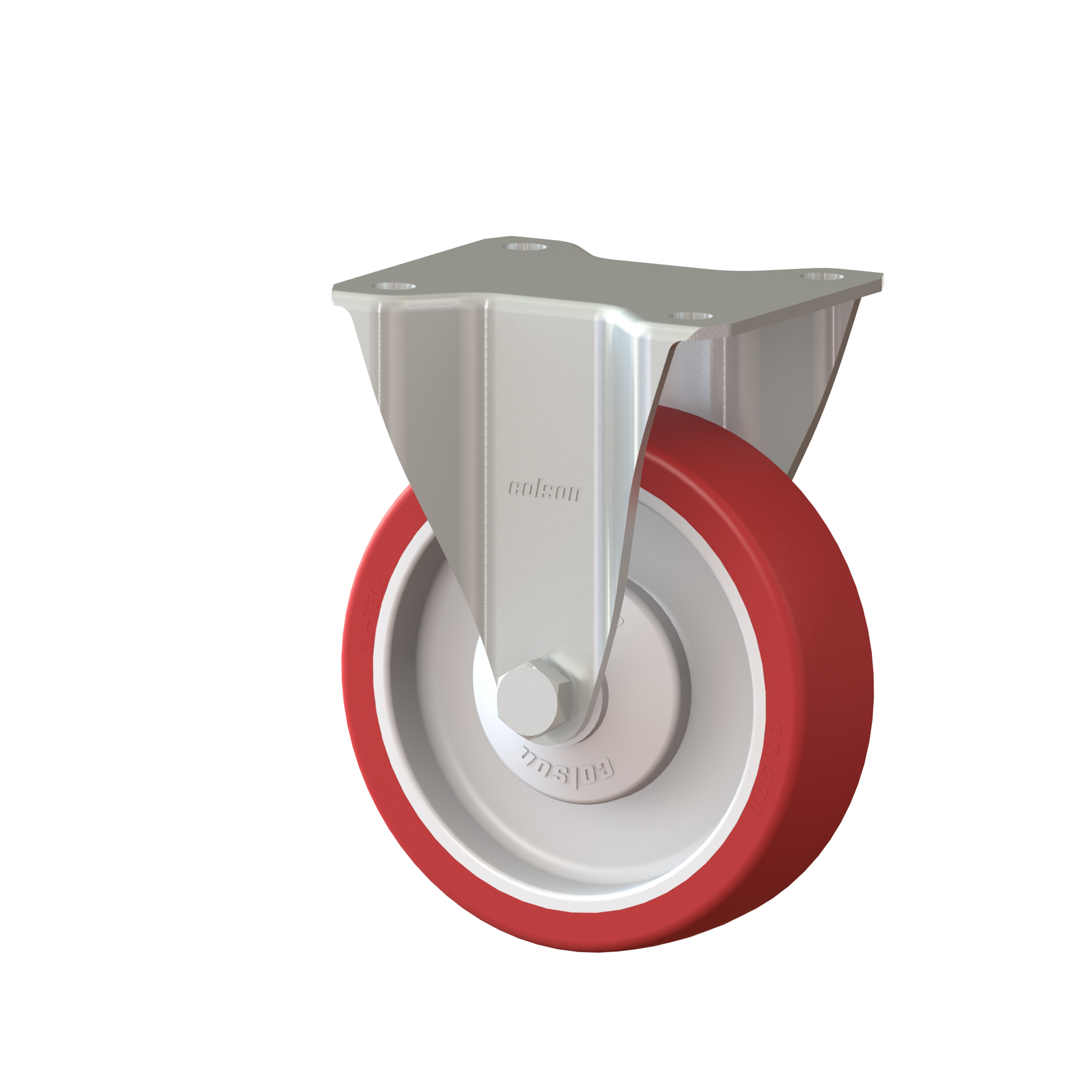

Fixed castor, 100 mm - 200 mm, 250 kg - 500 kg

Part number: I33AZ-UL8K100
(Elite)

I33AZ-UL8K100

Technical data

Diameter 100 mm
Wheel width 35 mm
Height 128 mm
Top plate dimensions 105x86 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Load capacity 250 kg

Technical description

  • pressed components made of carbon steel protected with an additional electro-galvanized zinc coating



Wheel

  • white nylon hub
  • polyurethane TPU wheel tread in red color with a
  • hardness of 95 ± 5 Shore A
  • Ø80-125 mm single ball bearing
  • Ø160-200 mm
  • double ball bearing

Variants

Diameter Wheel width Height Top plate dimensions Top plate hole diameter Dist. between holes Load capacity
I33AZ-UL8K100 100 mm 35 mm 128 mm 105x86 mm 9 mm 80x60 mm 250 kg
I33AZ-UL8K125 125 mm 35 mm 154 mm 105x86 mm 9 mm 80x60 mm 250 kg
I33AZ-UL8K160 160 mm 50 mm 195 mm 135x110 mm 11 mm 105x80 mm 450 kg
I33AZ-UL8K200 200 mm 50 mm 238 mm 135x110 mm 11 mm 105x80 mm 500 kg
Reach compliant
Map
Rohs compliant
