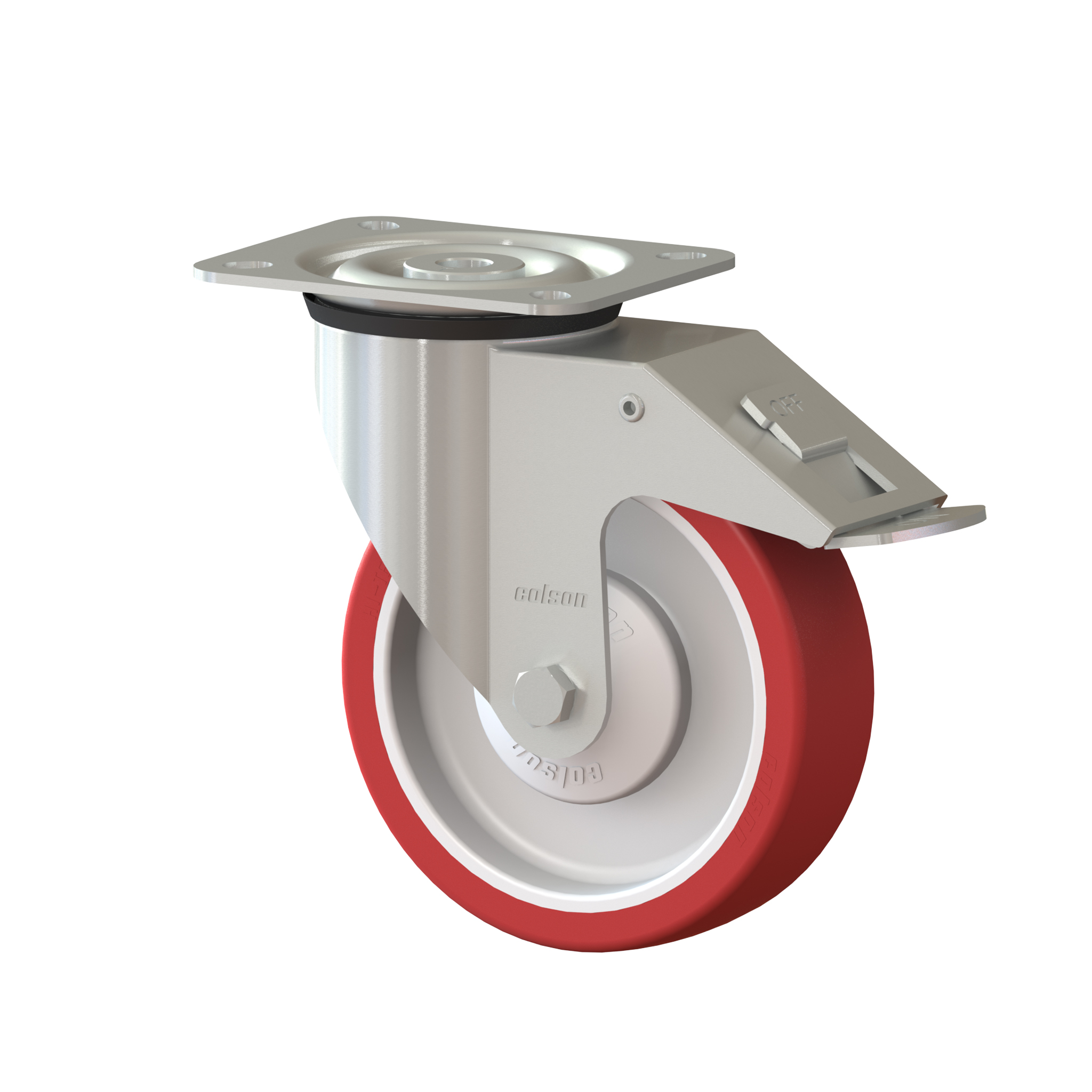

Swivel castor with total brake mounted behind, 80 mm - 200 mm, 150 kg - 400 kg

Part number: I62TZ-UL2K080
(Veloris)

I62TZ-UL2K080

Technical data

Diameter 80 mm
Wheel width 35 mm
Height 105 mm
Offset 34 mm
Top plate dimensions 104x85 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Brake swivel radius 123 mm
Load capacity 150 kg

Technical description

  • pressed components made of carbon steel
  • protected with an additional
  • electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • white nylon hub
  • polyurethane TPU wheel tread in red color with a
  • hardness of 95 ± 5 Shore A
  • Ø80-125 mm single ball bearing
  • Ø160-200 mm
  • double ball bearing

Variants

Diameter Wheel width Height Offset Top plate dimensions Top plate hole diameter Dist. between holes Brake swivel radius Load capacity
I62TZ-UL2K080 80 mm 35 mm 105 mm 34 mm 104x85 mm 9 mm 80x60 mm 123 mm 150 kg
I62TZ-UL2K100 100 mm 35 mm 128 mm 34 mm 104x85 mm 9 mm 80x60 mm 124 mm 150 kg
I62TZ-UL2K125 125 mm 35 mm 156 mm 38 mm 104x85 mm 9 mm 80x60 mm 140 mm 200 kg
I62TZ-UL2K160 160 mm 50 mm 195 mm 53 mm 135x110 mm 11 mm 105x80 mm 166 mm 300 kg
I62TZ-UL2K200 200 mm 50 mm 235 mm 53 mm 135x110 mm 11 mm 105x80 mm 166 mm 400 kg
Reach compliant
Map
Rohs compliant
