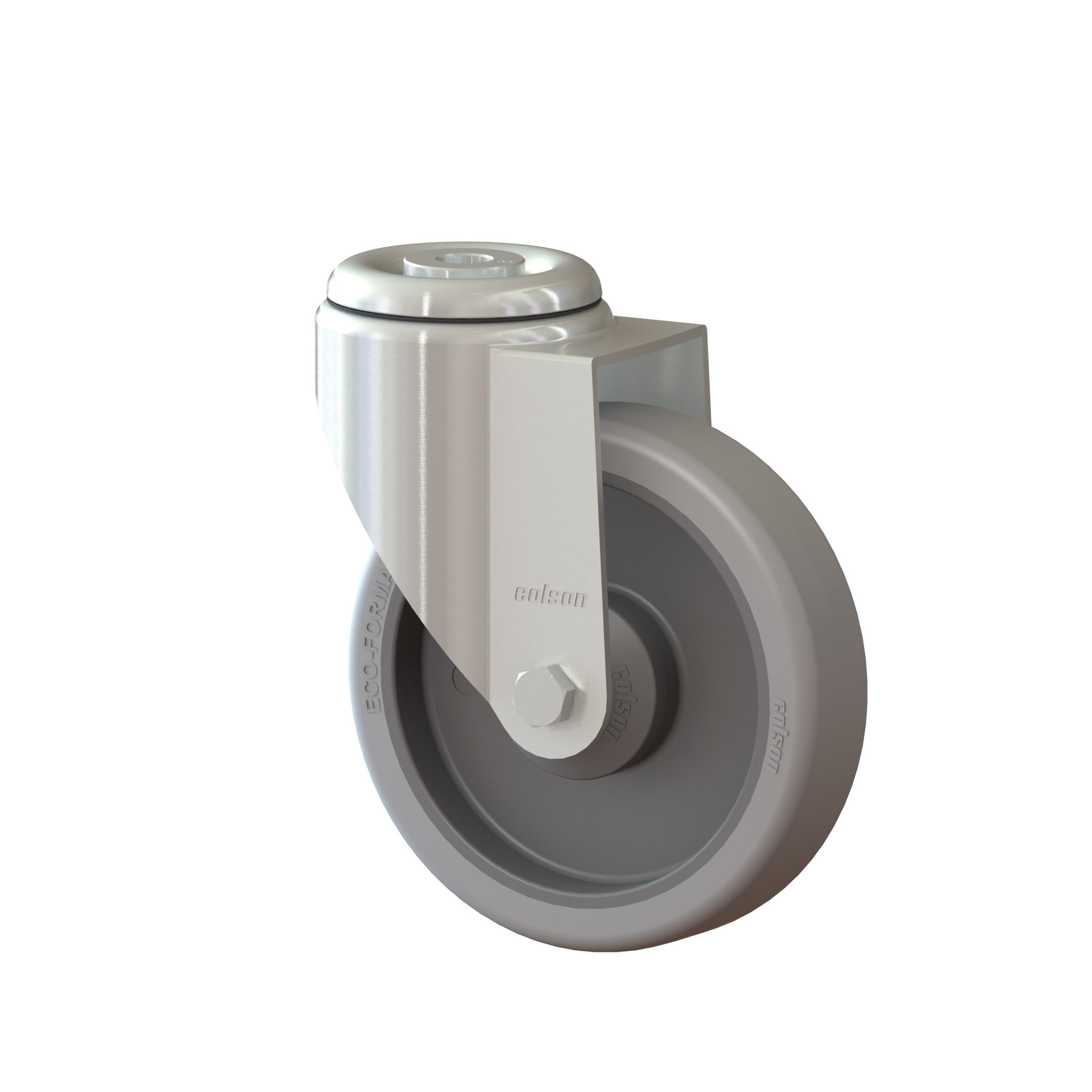

Swivel castor, 125 mm - 200 mm, 110 kg - 225 kg
Part number: I61AZ-QM1K125
(Veloris)
Technical data
| Diameter | 125 mm |
| Wheel width | 30 mm |
| Height | 156 mm |
| Offset | 38 mm |
| Bolt hole diameter | 12,5 mm |
| Load capacity | 110 kg |
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Wheel
- dark grey polypropylene hub
- ECOFORMA tread made of thermoplastic
- elastomer in light grey color with a hardness of 70 ± 5 Shore A
- single ball
- bearing
- *On request: antistatic version available.
Variants
|
Diameter |
Wheel width |
Height |
Offset |
Bolt hole diameter |
Load capacity |
| I61AZ-QM1K125 |
125 mm |
30 mm |
156 mm |
38 mm |
12,5 mm |
110 kg |
| I61AZ-QM1K160 |
160 mm |
40 mm |
195 mm |
53 mm |
13 mm |
200 kg |
| I61AZ-QM1K200 |
200 mm |
40 mm |
235 mm |
53 mm |
13 mm |
225 kg |
