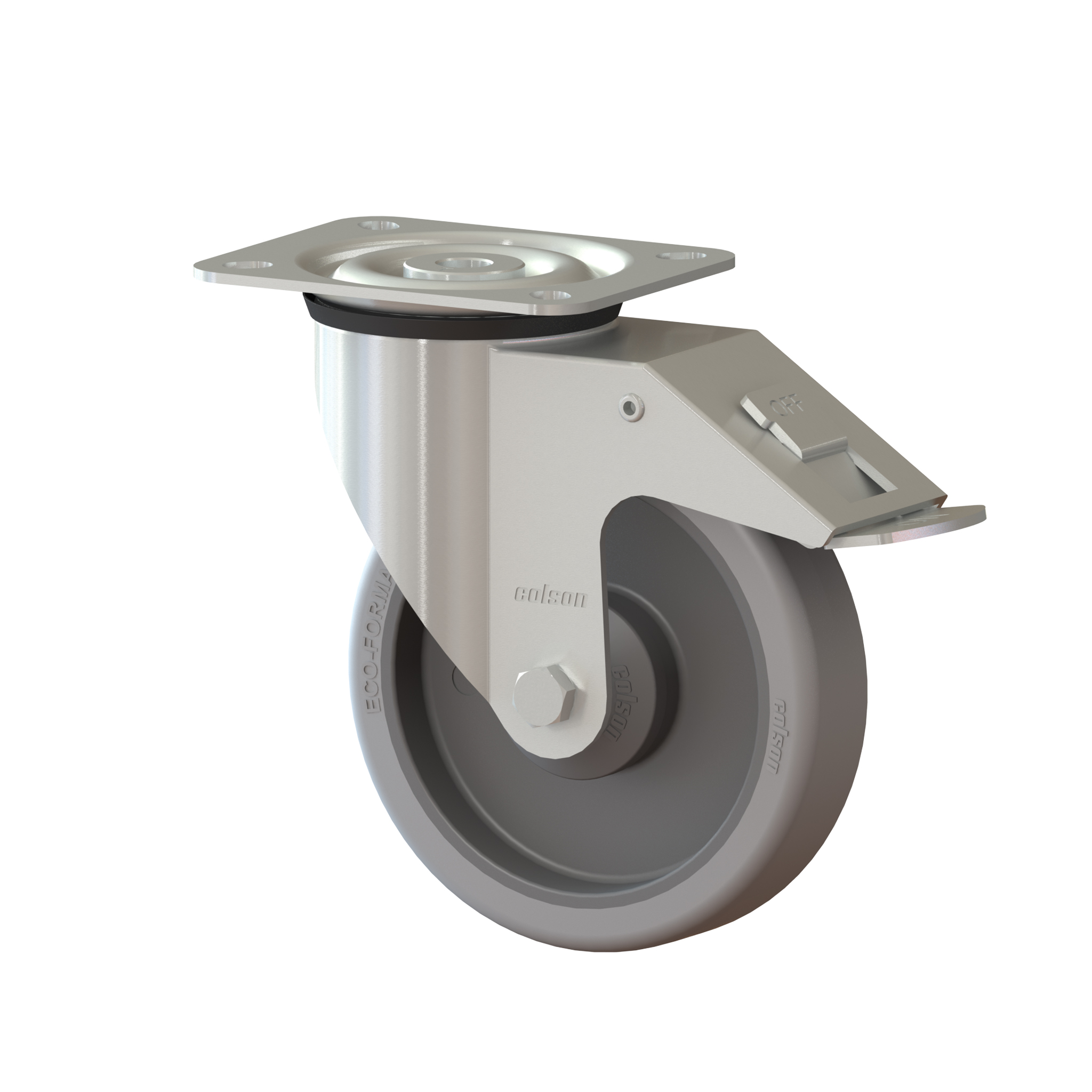

Swivel castor with total brake mounted behind, 125 mm - 200 mm, 110 kg - 225 kg
Part number: I62TZ-QM1K125
(Veloris)
Technical data
| Diameter | 125 mm |
| Wheel width | 30 mm |
| Height | 156 mm |
| Offset | 38 mm |
| Top plate dimensions | 104x85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Brake swivel radius | 140 mm |
| Load capacity | 110 kg |
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Wheel
- dark grey polypropylene hub
- ECOFORMA tread made of thermoplastic
- elastomer in light grey color with a hardness of 70 ± 5 Shore A
- single ball
- bearing
- *On request: antistatic version available.
Variants
|
Diameter |
Wheel width |
Height |
Offset |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Brake swivel radius |
Load capacity |
| I62TZ-QM1K125 |
125 mm |
30 mm |
156 mm |
38 mm |
104x85 mm |
9 mm |
80x60 mm |
140 mm |
110 kg |
| I62TZ-QM1K160 |
160 mm |
40 mm |
195 mm |
53 mm |
135x110 mm |
11 mm |
105x80 mm |
166 mm |
200 kg |
| I62TZ-QM1K200 |
200 mm |
40 mm |
235 mm |
53 mm |
135x110 mm |
11 mm |
105x80 mm |
166 mm |
225 kg |
