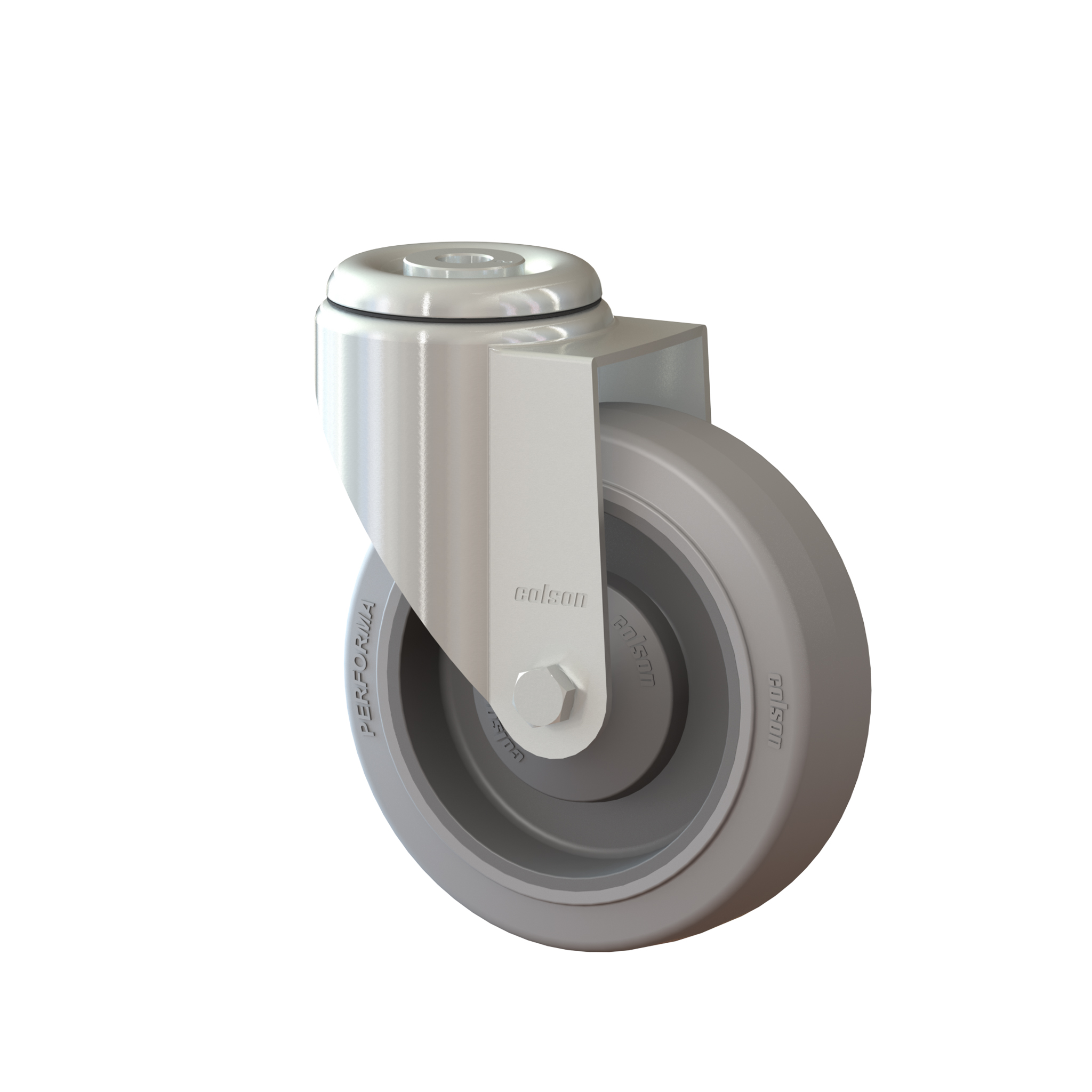

Swivel castor, 80 mm - 200 mm, 120 kg - 280 kg

Part number: I61AZ-PL1K080
(Veloris)

I61AZ-PL1K080

Technical data

Diameter 80 mm
Wheel width 32 mm
Height 105 mm
Offset 34 mm
Bolt hole diameter 12,5 mm
Load capacity 120 kg

Technical description

  • pressed components made of carbon steel
  • protected with an additional
  • electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • dark grey polypropylene hub
  • PERFORMA® tread made of
  • thermoplastic elastomer in grey color with a hardness of 65 ± 5 Shore A
  • Ø80-125
  • mm single ball bearing
  • Ø160-200 mm double ball bearing

Variants

Diameter Wheel width Height Offset Bolt hole diameter Load capacity
I61AZ-PL1K080 80 mm 32 mm 105 mm 34 mm 12,5 mm 120 kg
I61AZ-PL1K100 100 mm 32 mm 128 mm 34 mm 12,5 mm 150 kg
I61AZ-PL1K125 125 mm 40 mm 156 mm 38 mm 12,5 mm 180 kg
I61AZ-PL1K160 160 mm 50 mm 195 mm 53 mm 13 mm 225 kg
I61AZ-PL1K200 200 mm 50 mm 235 mm 53 mm 13 mm 280 kg
