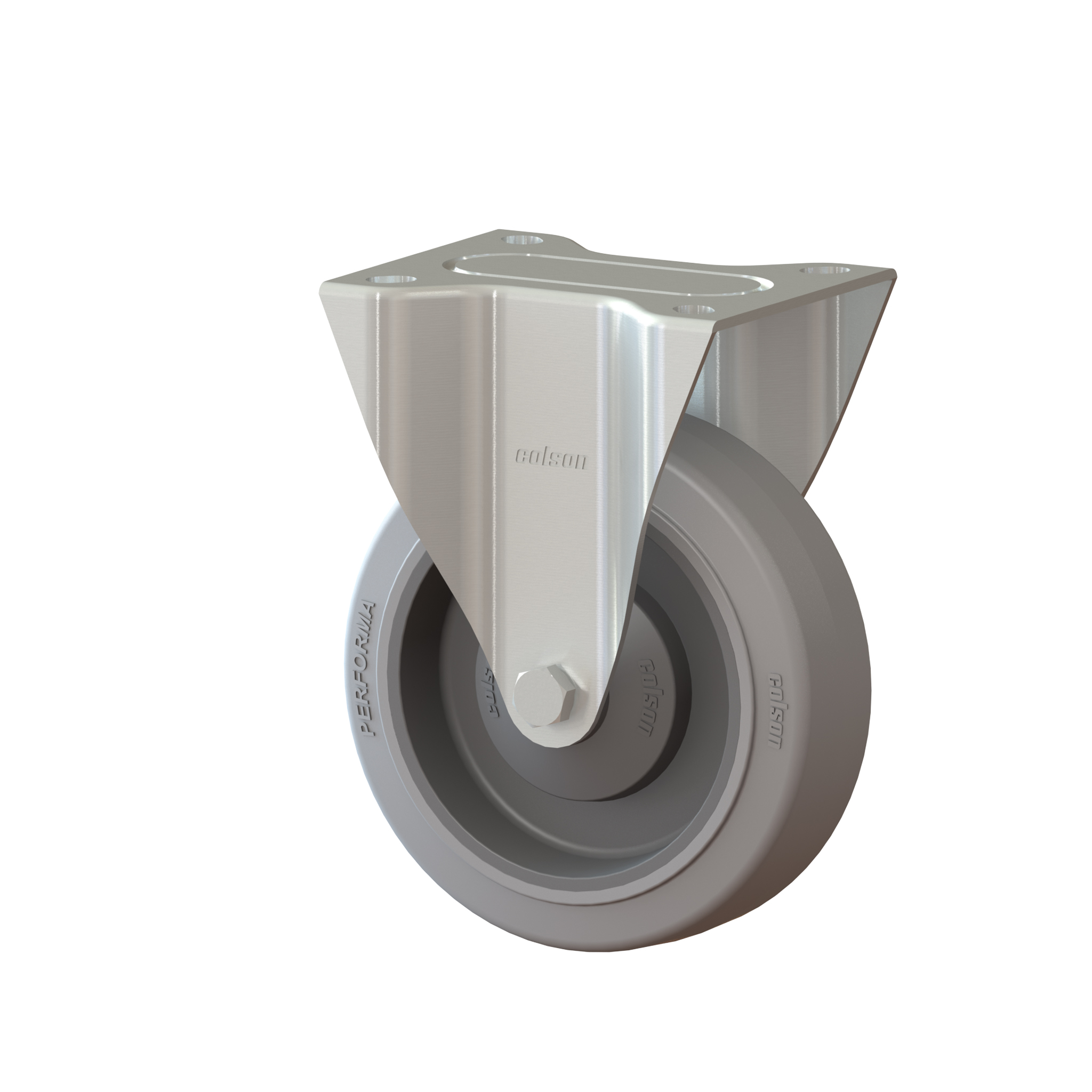

Fixed castor, 80 mm - 200 mm, 120 kg - 280 kg

Part number: I63AZ-PL1K080
(Veloris)

I63AZ-PL1K080

Technical data

Diameter 80 mm
Wheel width 32 mm
Height 105 mm
Top plate dimensions 104x85 mm
Top plate hole diameter 9 mm
Dist. between holes 80x60 mm
Load capacity 120 kg

Technical description

  • pressed components made of carbon steel protected with an additional electro-galvanized zinc coating



Wheel

  • dark grey polypropylene hub
  • PERFORMA® tread made of
  • thermoplastic elastomer in grey color with a hardness of 65 ± 5 Shore A
  • Ø80-125
  • mm single ball bearing
  • Ø160-200 mm double ball bearing

Variants

Diameter Wheel width Height Top plate dimensions Top plate hole diameter Dist. between holes Load capacity
I63AZ-PL1K080 80 mm 32 mm 105 mm 104x85 mm 9 mm 80x60 mm 120 kg
I63AZ-PL1K100 100 mm 32 mm 128 mm 104x85 mm 9 mm 80x60 mm 150 kg
I63AZ-PL1K125 125 mm 40 mm 156 mm 104x85 mm 9 mm 80x60 mm 180 kg
I63AZ-PL1K160 160 mm 50 mm 195 mm 135x110 mm 11 mm 105x80 mm 225 kg
I63AZ-PL1K200 200 mm 50 mm 235 mm 135x110 mm 11 mm 105x80 mm 280 kg
Reach compliant
Map
Rohs compliant
