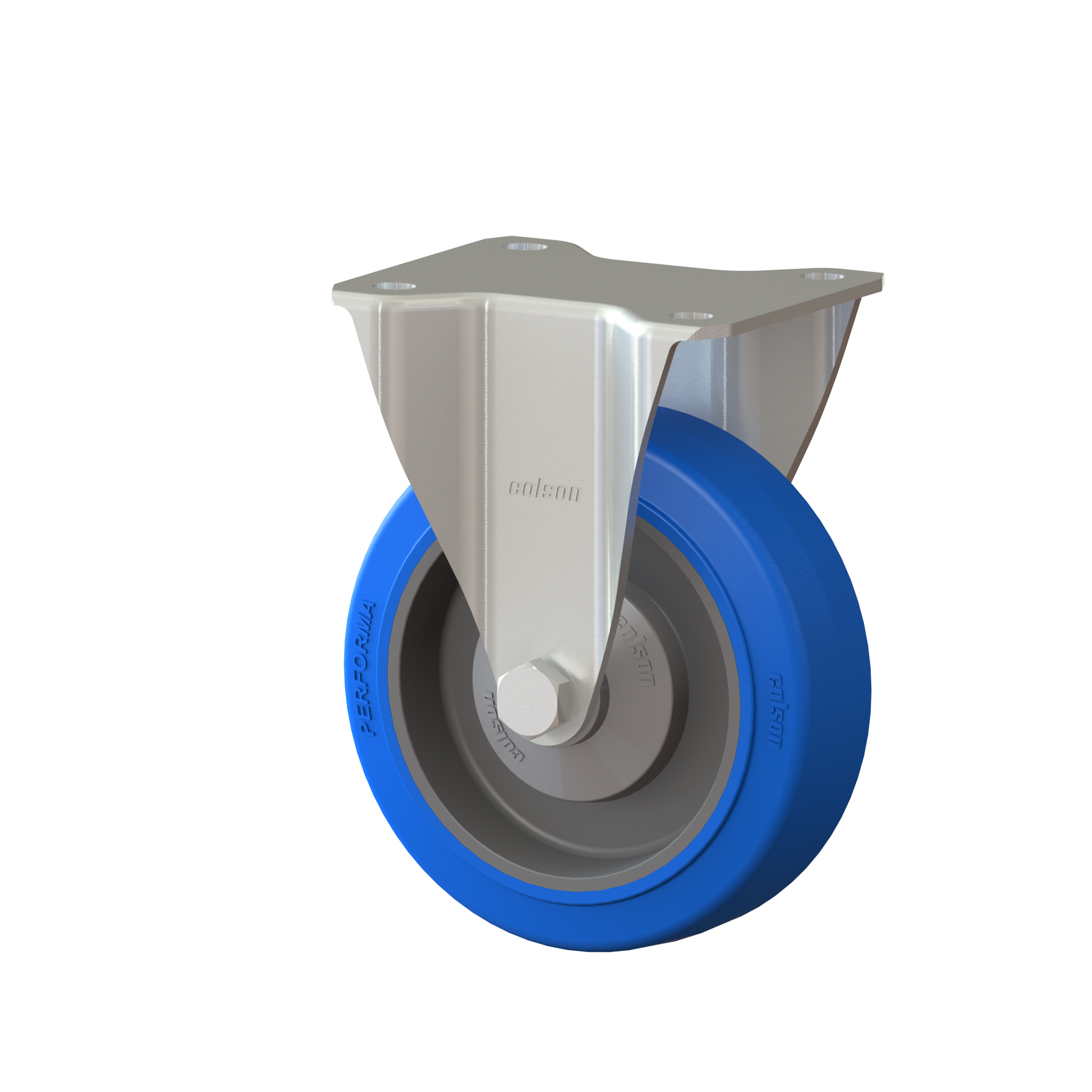

Fixed castor, 100 mm - 125 mm, 150 kg - 180 kg
Part number: I33AZ-PN5K100-C01
(Elite)
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 129 mm |
| Top plate dimensions | 105x89 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 150 kg |
Technical description
- pressed components made of carbon steel protected with an additional electro-galvanized zinc coating
Wheel
- dark grey polypropylene hub
- PERFORMA® tread made of
- thermoplastic elastomer in blue color with a hardness of 65 ± 5 Shore A
- single
- ball bearing
Variants
|
Diameter |
Wheel width |
Height |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Load capacity |
| I33AZ-PN5K100-C01 |
100 mm |
32 mm |
129 mm |
105x89 mm |
9 mm |
80x60 mm |
150 kg |
| I33AZ-PN5K100-C01 |
125 mm |
40 mm |
154 mm |
105x89 mm |
9 mm |
80x60 mm |
180 kg |
