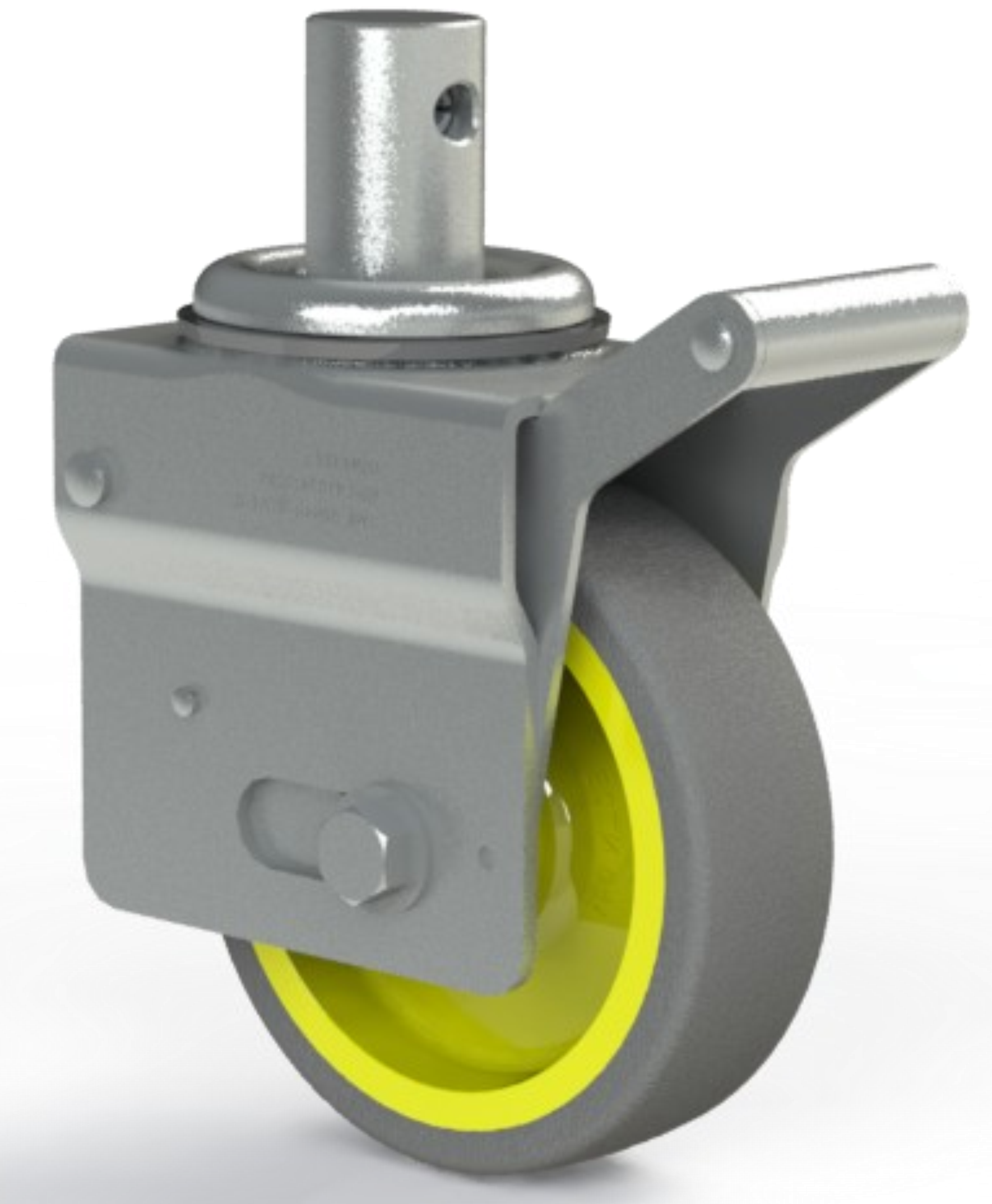

Swivel castor with wheel locking brake, 150 mm - 200 mm, 820 kg

Part number: SJE 150 NTOB B21 BX4 - 0640-0162

Technical data

Diameter 150 mm
Tread width 45 mm
Height 190 mm
Offset 34 mm
Stem size 38x52 mm
Brake swivel radius 165 mm
Load capacity 820 kg

Technical description

  • pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • nylon hub in BS 381C Bold Yellow No. 363 color
  • polyurethane TPU wheel tread in grey color with a hardness of 95 ± 5 Shore A
  • plain bearing

Areas of application

  • Scaffold

Variants

Diameter Tread width Height Offset Stem size Brake swivel radius Load capacity
150 mm 45 mm 190 mm 34 mm 38x52 mm 165 mm 820 kg
200 mm 50 mm 240 mm 34 mm 38x52 mm 165 mm 820 kg
