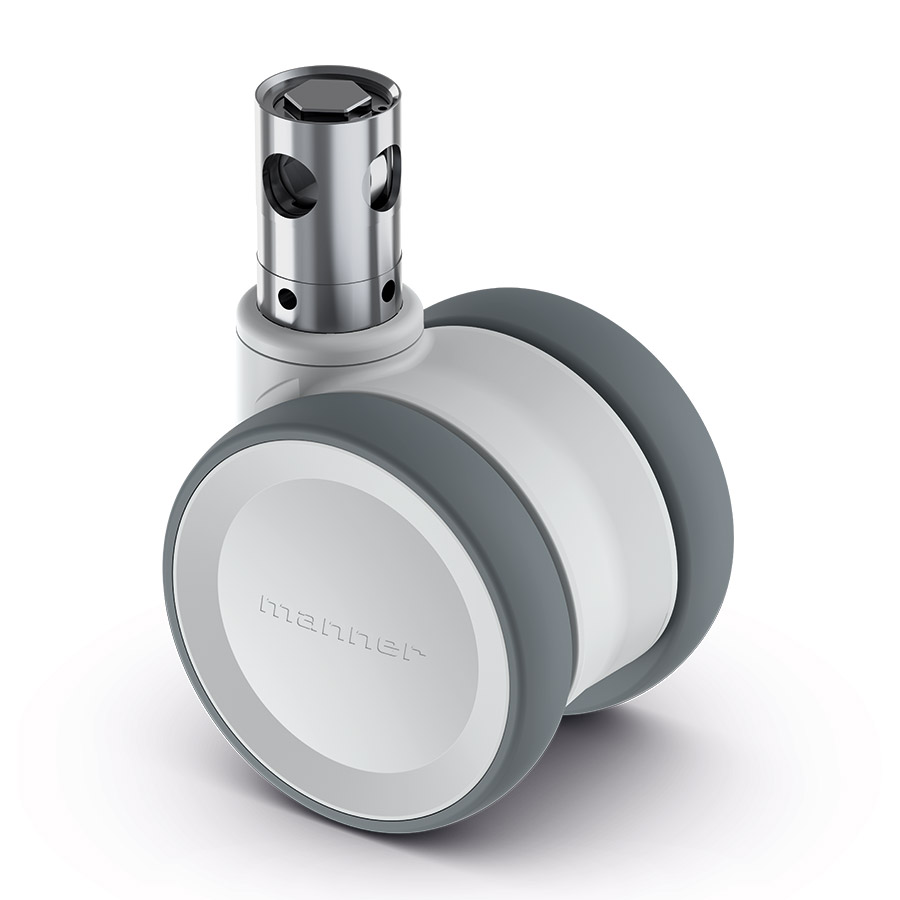

Swivel castor with central total brake, 100 mm, 135 kg
Part number: 305875 (TWIST CL)
Technical data
| Diameter | 100 mm |
| Tread width | 2x20 (85) mm |
| Height | 104 mm |
| Offset | 32 mm |
| Stem size | 32x50 mm |
| Brake swivel radius | 91 mm |
| Load capacity | 135 kg |
Technical description
- TWIST Central Locking
- plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- integrated selection mechanism with central total locking brake
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Areas of application
- care beds
- diagnostic equipment
- electronic equipment
- hospital beds
- medical & diagnostic equipment
- medical-technical equipment
- op beds
Variants
| Diameter | Tread width | Height | Offset | Stem size | Brake swivel radius | Load capacity | |
|---|---|---|---|---|---|---|---|
| 100 mm | 2x20 (85) mm | 104 mm | 32 mm | 32x50 mm | 91 mm | 135 kg | |
| 100 mm | 2x20 (85) mm | 104 mm | 32 mm | 32x50 mm | 91 mm | 135 kg |
