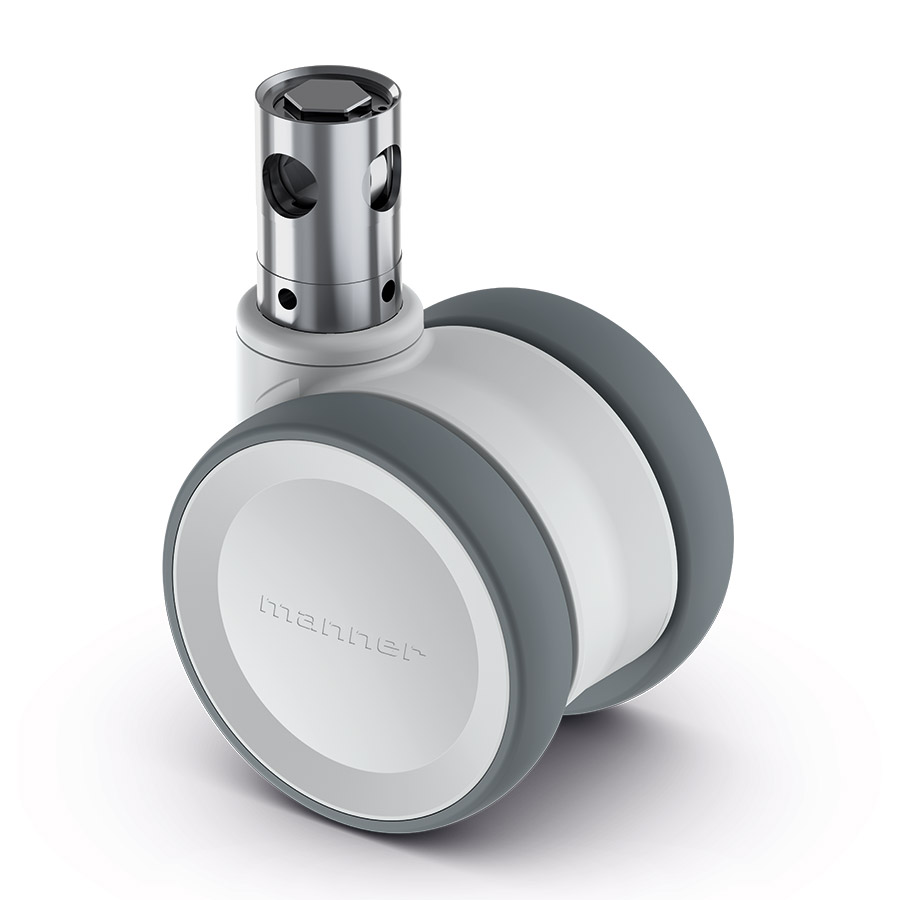

Swivel castor with central/directional total brake, 100 mm, 125 kg
Part number: Twist CL r (TWIST CL)
Technical data
| Diameter | 100 mm |
| Tread width | 2x20 (81) mm |
| Height | 118 mm |
| Stem size | 32x50 mm |
| Brake swivel radius | 89 mm |
| Load capacity | 125 kg |
Technical description
- TWIST CL plastic twin wheel castor
- fork is made of glass fiber-reinforced polyamide
- maintenance-free construction
- smooth selection function
- integrated selection mechanism with central total locking brake
- and direction locking brake
- permanently grease filled in the switch mechanism
- on request also available with other wheel variants
Wheel
- polyurethane tyre (Shore A 95)
- glass fiber-reinforced polyamide wheel centre
- ball bearing
Areas of application
- care beds
- diagnostic equipment
- electronic equipment
- hospital beds
- medical & diagnostic equipment
- medical-technical equipment
- op beds
Variants
| Diameter | Tread width | Height | Stem size | Brake swivel radius | Load capacity | |
|---|---|---|---|---|---|---|
| 100 mm | 2x20 (81) mm | 118 mm | 32x50 mm | 89 mm | 125 kg | |
| 100 mm | 2x20 (81) mm | 118 mm | 32x50 mm | 89 mm | 125 kg |
