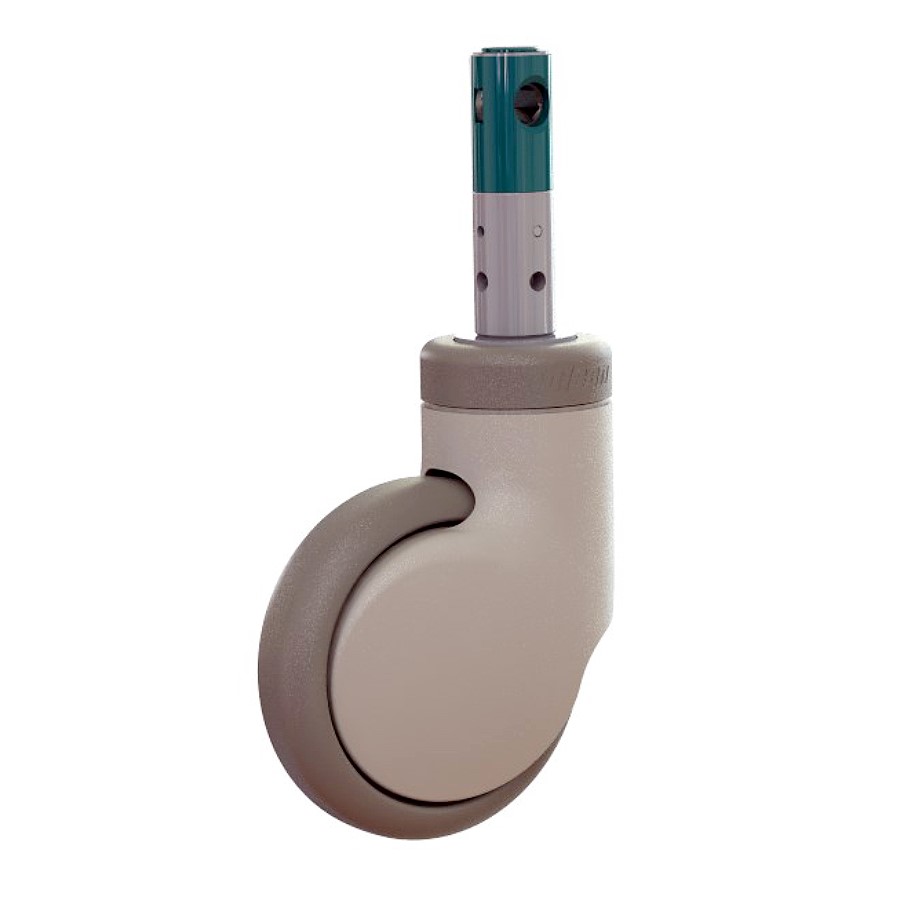

Swivel castor with central/directional total brake, 125 mm, 100 kg

Part number: 235007016M (Single TECH Combi)

Technical data

Diameter	125 mm
Tread width	32 mm
Height	171 mm
Offset	41 mm
Stem size	28x98 - M8 mm
Load capacity	100 kg

Technical description

• Pressure die cast aluminium body for light weight and high load capacity
• Low rolling friction and force to initiate motion
• Dust and splash-proof
• Integrated switching mechanism with central total and directional lock
• Permanent grease filling in the switching mechanism
• Also available with other wheel variants, colours and stems
• Castor positional mode: 04 (Foot pedal across direction of travel)



Wheel

• Wheel centre polypropylene
• Performa rubber tread (70 Sh A)
• Sealed precision ball bearing
• Available also in conductive version
