Download datasheet

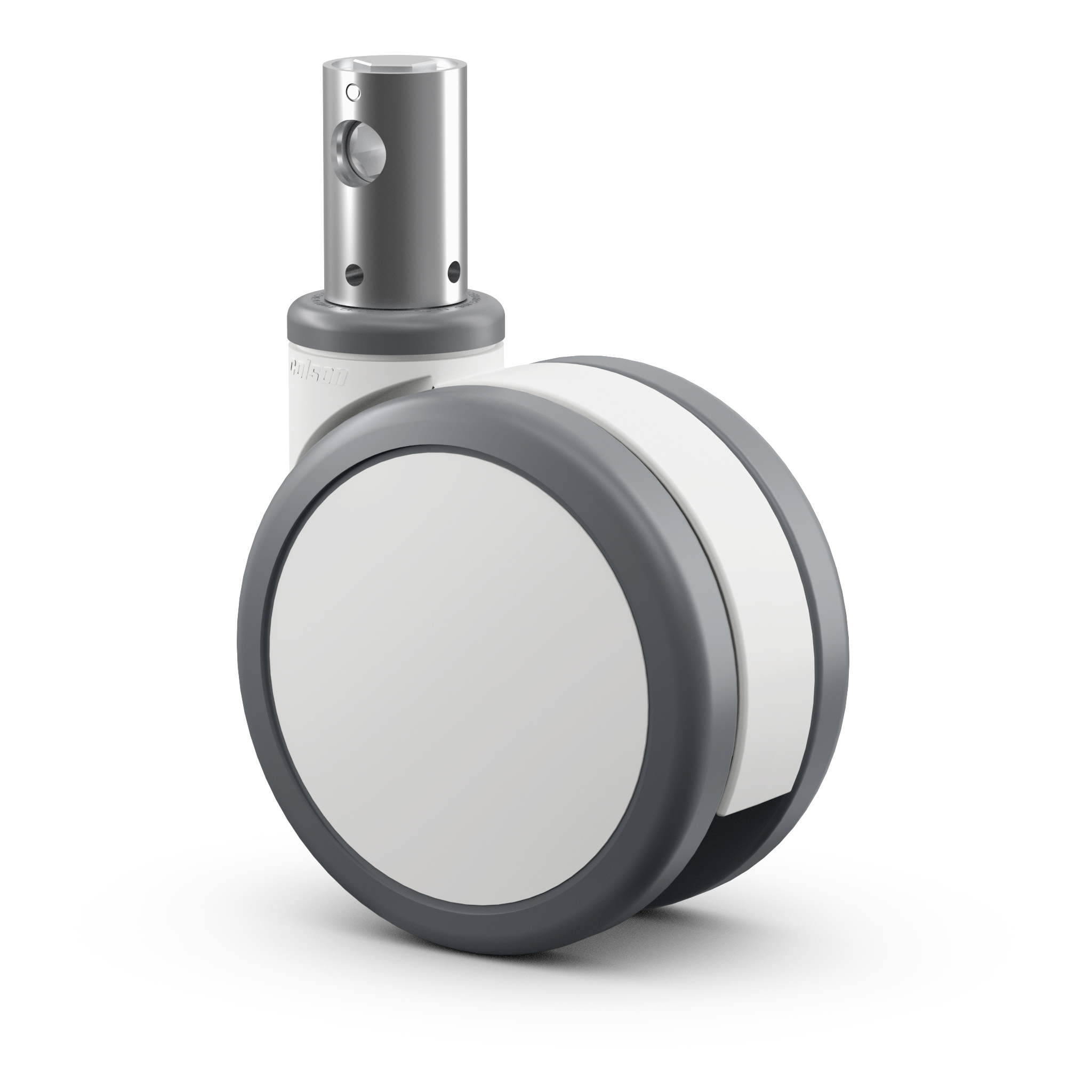

Swivel castor with central total brake, 125 mm - 150 mm, 135 kg - 150 kg

Part number: 305006900M
(TWINTECH)

Technical data

Diameter 125 mm
Tread width 75 mm
Wheel width 2x18 mm
Height 139 mm
Offset 105 mm
Stem size 32x52 mm
Load capacity 135 kg

Technical description

  • Pressure die cast aluminium body for light weight and high load capacity
  • Low rolling friction and force to initiate motion
  • Suitable for cleaning in disinfection cabins
  • Dust and splash-proof
  • Integrated switching mechanism with central total lock
  • Permanent grease filling in the switching mechanism
  • Also available with other wheel variants, colours and long stem 28x98 mm



Wheel

  • Wheel centre nylon
  • Polyurethane tread (90 Sh A)
  • Precision ball bearing
  • Available also in conductive version

Areas of application

  • Intensive care beds
  • Hospital beds
  • Medical equipment
  • Operating theatre beds
  • Operating tables
  • Nursing beds

Variants

Diameter Tread width Wheel width Height Offset Stem size Load capacity
125 mm 75 mm 2x18 mm 139 mm 105 mm 32x52 mm 135 kg
125 mm 75 mm 2x18 mm 139 mm 105 mm 32x52 mm 135 kg
125 mm 75 mm 2x18 mm 148 mm 105 mm 25x30 mm 135 kg
150 mm 79 mm 2x18 mm 164 mm 131 mm 32x52 mm 150 kg
150 mm 79 mm 2x18 mm 164 mm 131 mm 32x52 mm 150 kg
Reach compliant
Map
Rohs compliant
