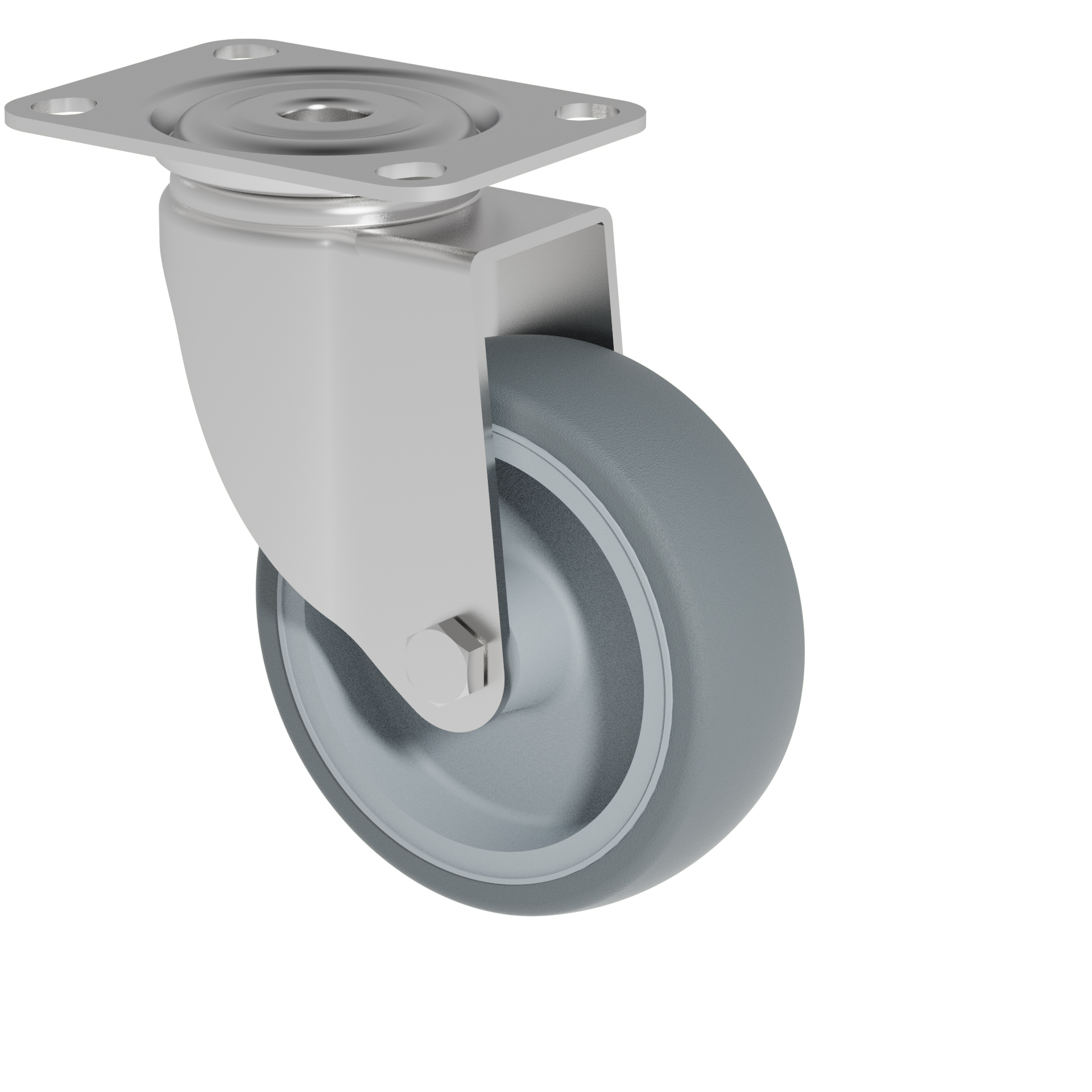

Swivel castor, 100 mm, 100 kg

Part number: GSL-41G-P95 (Serie/s GS)

Technical data

Diameter	100 mm
Tread width	32 mm
Hub length	36 mm
Height	135 mm
Offset	43 mm
Top plate dimensions	95x70 mm
Top plate hole diameter	8,5 mm
Dist. between holes	75x50/72x52 mm
Brake swivel radius	93 mm
Load capacity	100 kg

Technical description

• sheet steel metal housing
• swivel bearing with double ball race
• zinc passivated



Wheel

• TPE tread (Shore A 87)
• polypropylene wheel body
• thread guard
• plain bearing
• non-oiling
• on request further variants available
