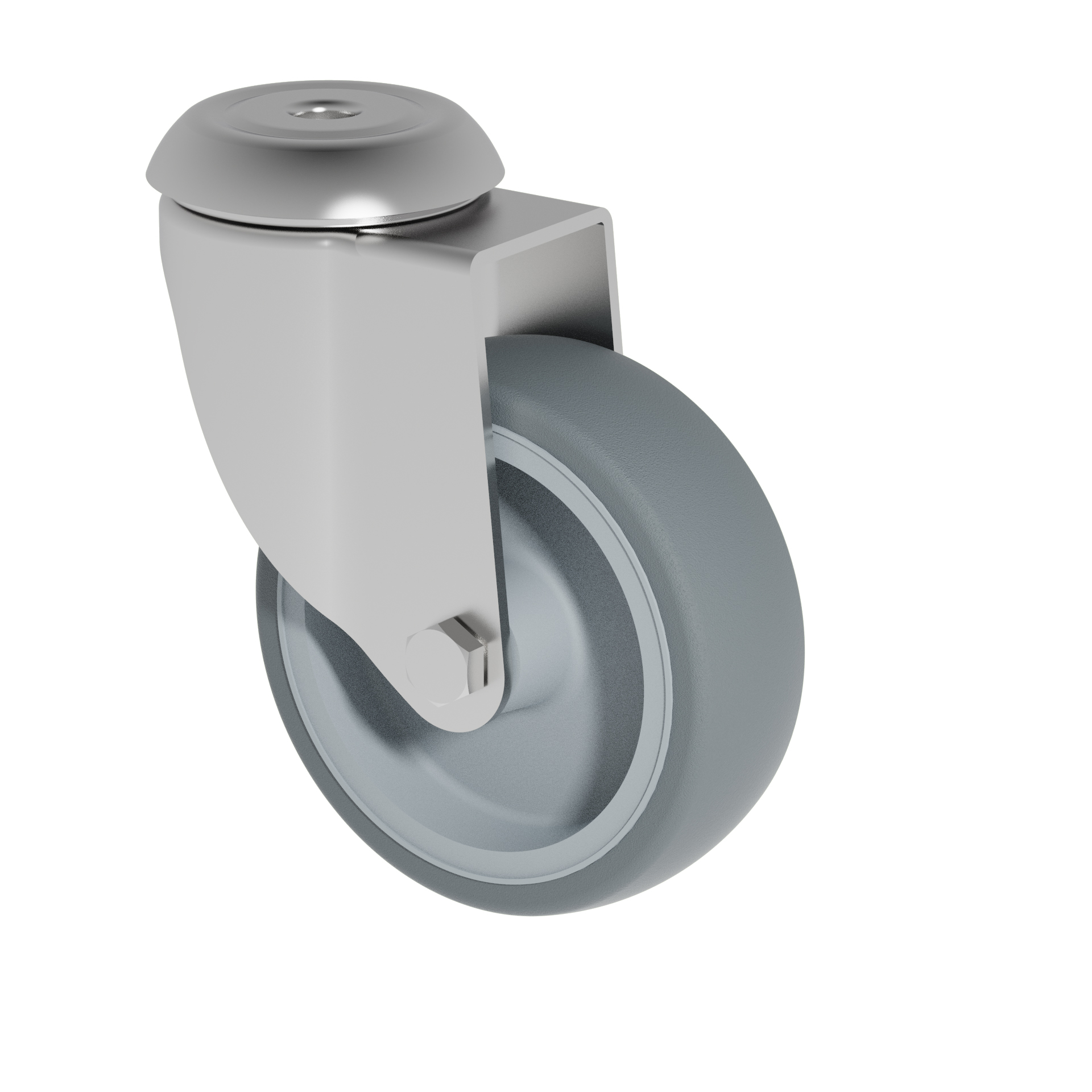

Swivel castor, 100 mm - 125 mm, 100 kg

Part number: GSL-41G-L10 (Serie/s GS)

Technical data

Diameter 100 mm
Tread width 32 mm
Hub length 36 mm
Height 135 mm
Offset 43 mm
Bolt hole diameter 11 mm
Brake swivel radius 93 mm
Load capacity 100 kg



Wheel

  • TPE tread (Shore A 87)
  • polypropylene wheel body
  • thread guard
  • plain bearing
  • non-oiling
  • on request further variants available

Areas of application

  • bedside cabinets
  • brochure display stands
  • computer tables
  • display stands
  • dustbins
  • file carts
  • garment stands
  • greeting card dispensers
  • housekeeping carts
  • infusion stands
  • newspaper dispensers
  • sales stands
  • small furniture
  • sport equipment

Variants

Diameter Tread width Hub length Height Offset Bolt hole diameter Brake swivel radius Load capacity
100 mm 32 mm 36 mm 135 mm 43 mm 11 mm 93 mm 100 kg
100 mm 32 mm 36 mm 135 mm 43 mm 12,2 mm 93 mm 100 kg
125 mm 32 mm 36 mm 160 mm 41 mm 11 mm 104 mm 100 kg
125 mm 32 mm 36 mm 160 mm 41 mm 12,2 mm 104 mm 100 kg
Reach compliant
Map
Rohs compliant
