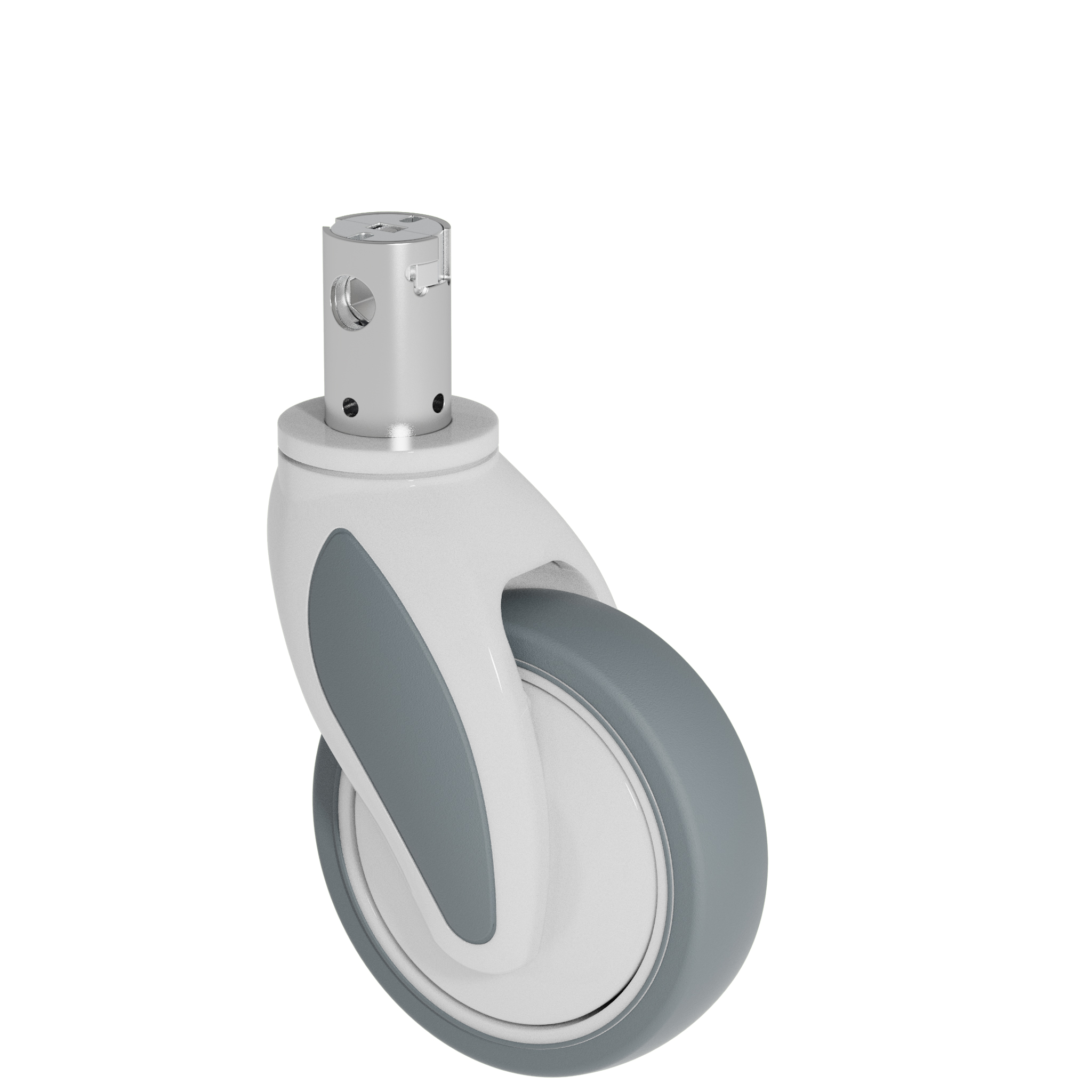

Swivel castor with central total brake, 125 mm - 150 mm, 100 kg

Part number: KH2Q-51C-Z985-01 (VIVAX HBC)

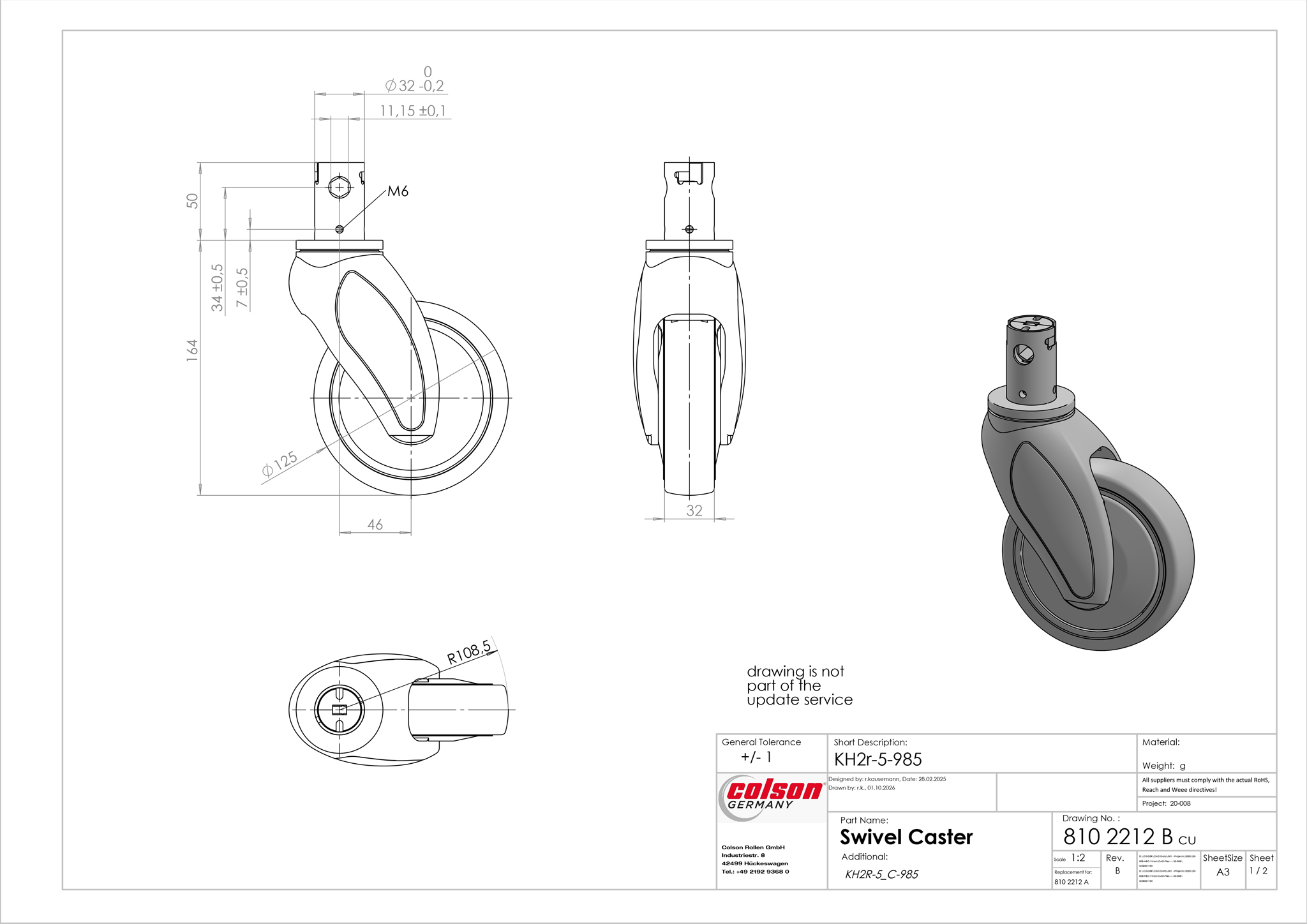

Technical data

Diameter 125 mm
Tread width 32 mm
Height 164 mm
Offset 46 mm
Load capacity 100 kg

Accessories & options

Technical description

  • High-performance plastic housing with steel stem and two ball bearings in swivel head for high load capacities
  • smooth selection function
  • integrated selection mechanism with total locking brake "q" and direction locking brake "r"
  • permanently grease filled in the switch mechanism
  • also available with electrically conductive wheel



Wheel

  • TPE tread (Shore A 87)
  • polypropylene wheel body
  • thread guard
  • ball bearing
  • non-oiling
  • on request further variants available

Areas of application

  • care beds
  • hospital beds

Variants

Diameter Tread width Height Offset Load capacity
125 mm 32 mm 164 mm 46 mm 100 kg
125 mm 32 mm 164 mm 46 mm 100 kg
125 mm 32 mm 164 mm 46 mm 100 kg
125 mm 32 mm 164 mm 46 mm 100 kg
125 mm 32 mm 164 mm 46 mm 100 kg
125 mm 32 mm 164 mm 46 mm 100 kg
150 mm 32 mm 189 mm 46 mm 100 kg
150 mm 32 mm 189 mm 46 mm 100 kg
150 mm 32 mm 189 mm 46 mm 100 kg
150 mm 32 mm 189 mm 46 mm 100 kg
Reach compliant
Map
Rohs compliant
