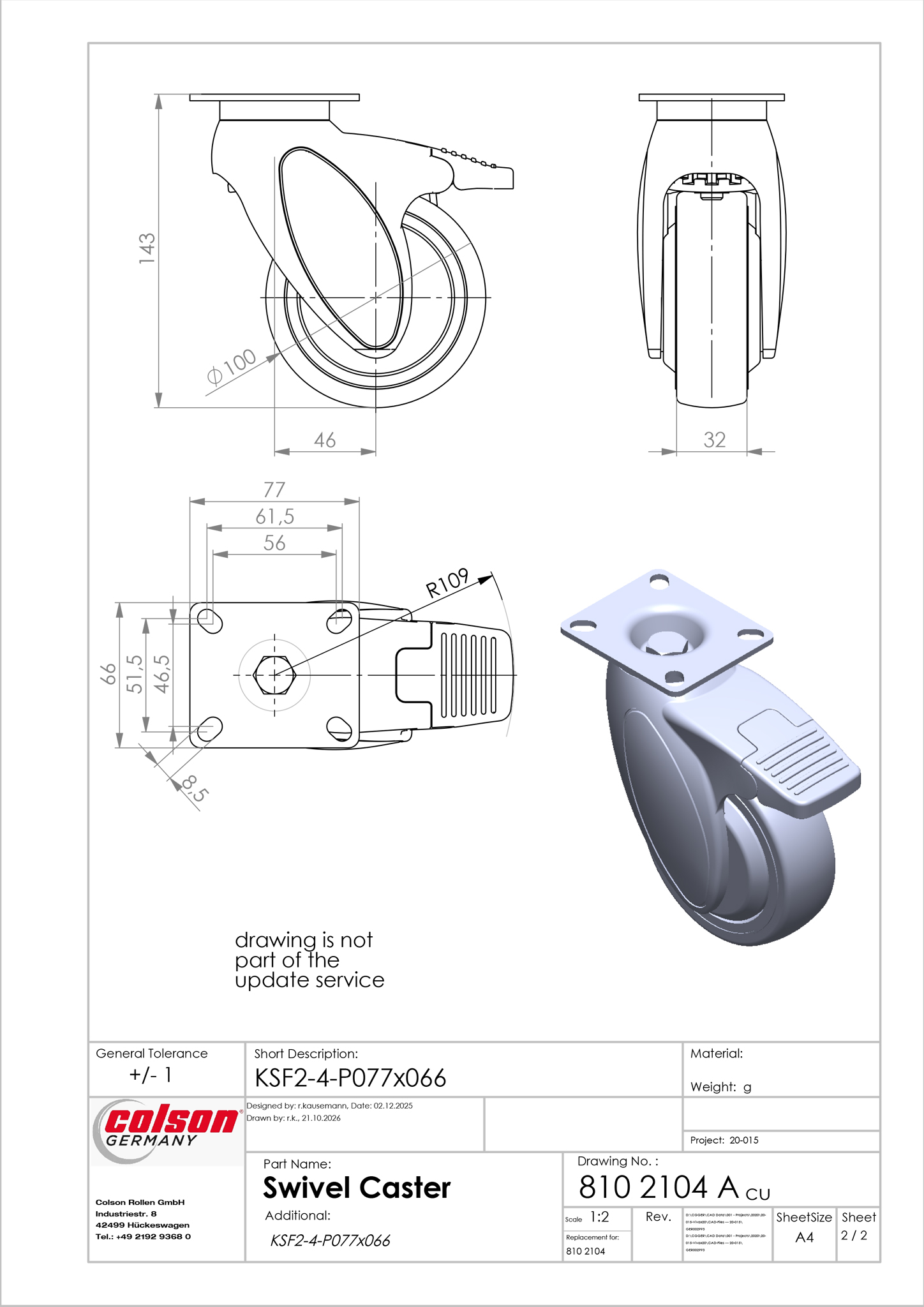

Swivel castor with total brake mounted behind, 100 mm - 125 mm, 100 kg
Part number: KSF2-41C-P77
(VIVAX 2.0)
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 100 kg |
| Weight | 590 g |
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
Variants
|
Diameter |
Wheel width |
Height |
Offset |
Top plate dimensions |
Top plate hole diameter |
Dist. between holes |
Load capacity |
Weight |
|
100 mm |
32 mm |
142,5 mm |
46 mm |
77x66 mm |
8,5 mm |
61x51/56x46 mm |
100 kg |
590 g |
|
125 mm |
32 mm |
168,5 mm |
46 mm |
77x66 mm |
8,5 mm |
61x51/56x46 mm |
100 kg |
680 g |
