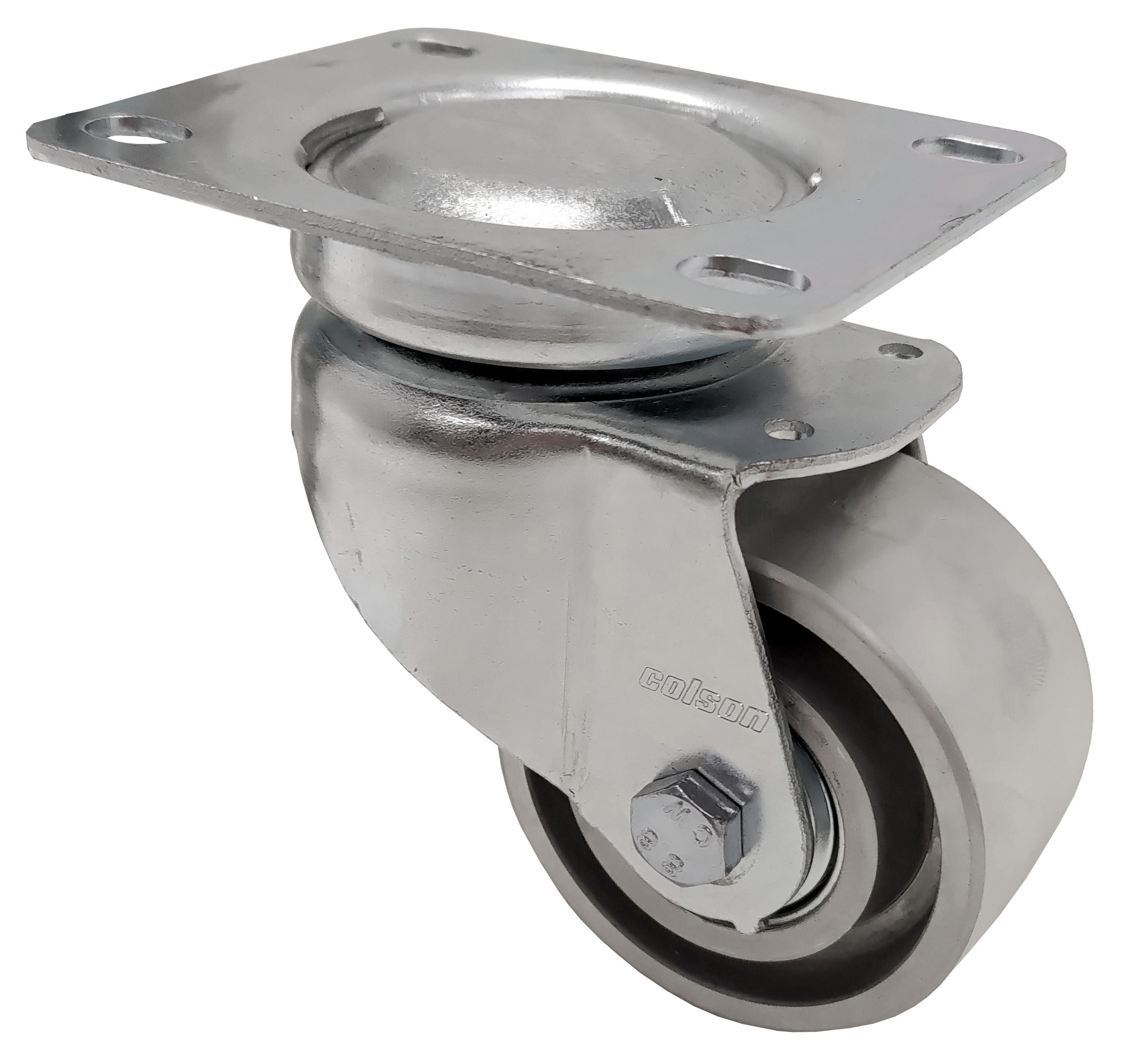

Swivel castor, 70 mm, 240 kg

Part number: JSAN 0702 6152

Technical data

Diameter	70 mm
Wheel width	40 mm
Hub length	45 mm
Height	105 mm
Offset	35 mm
Wheel axle diameter	15 mm
Top plate dimensions	105 x 85 mm
Top plate hole diameter	9 mm
Dist. between holes	80 x 60 mm
Load capacity	240 kg
Weight	1 kg

Technical description

• Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel



Wheel

• Aluminium wheel for intensive use,
• operating temperatures from -40° up to +300°C with 2 sealed ball bearings and a hollow shaft excellent resistance to wear, resistant to steam and water
