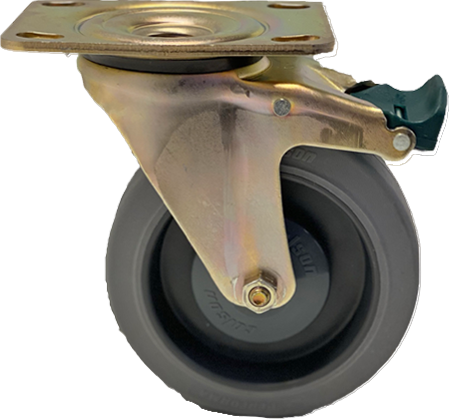

Swivel castor with total brake mounted behind, 125 mm, 150 kg
Part number: BHPF 1251 5100
Technical data
| Diameter | 125 mm |
| Wheel width | 40 mm |
| Hub length | 48 mm |
| Height | 155 mm |
| Wheel axle diameter | 10 mm |
| Top plate dimensions | 115 x 80mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 96/90 x 60/56mm |
| Brake swivel radius | 99.3 mm |
| Load capacity | 150 kg |
| Weight | 1 kg |
Technical description
- Swivel fork of deep drawn zinc-coated and yellow passivated sheet steel swivel bearing with double
- ball race way with a sealring and total lock brake ( green brake pedal)
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
