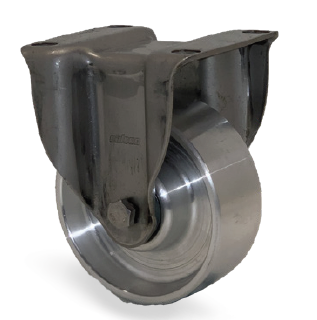

Fixed castor, 70 mm, 250 kg
Part number: FXAN 0702 6152
Technical data
| Diameter | 70 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 250 kg |
Technical description
- Rigid fork of stainless steel
Wheel
- Aluminium wheel for intensive use,
- operating temperatures from -40° up to +300°C with 2 sealed ball bearings and a hollow shaft excellent resistance to wear, resistant to steam and water
