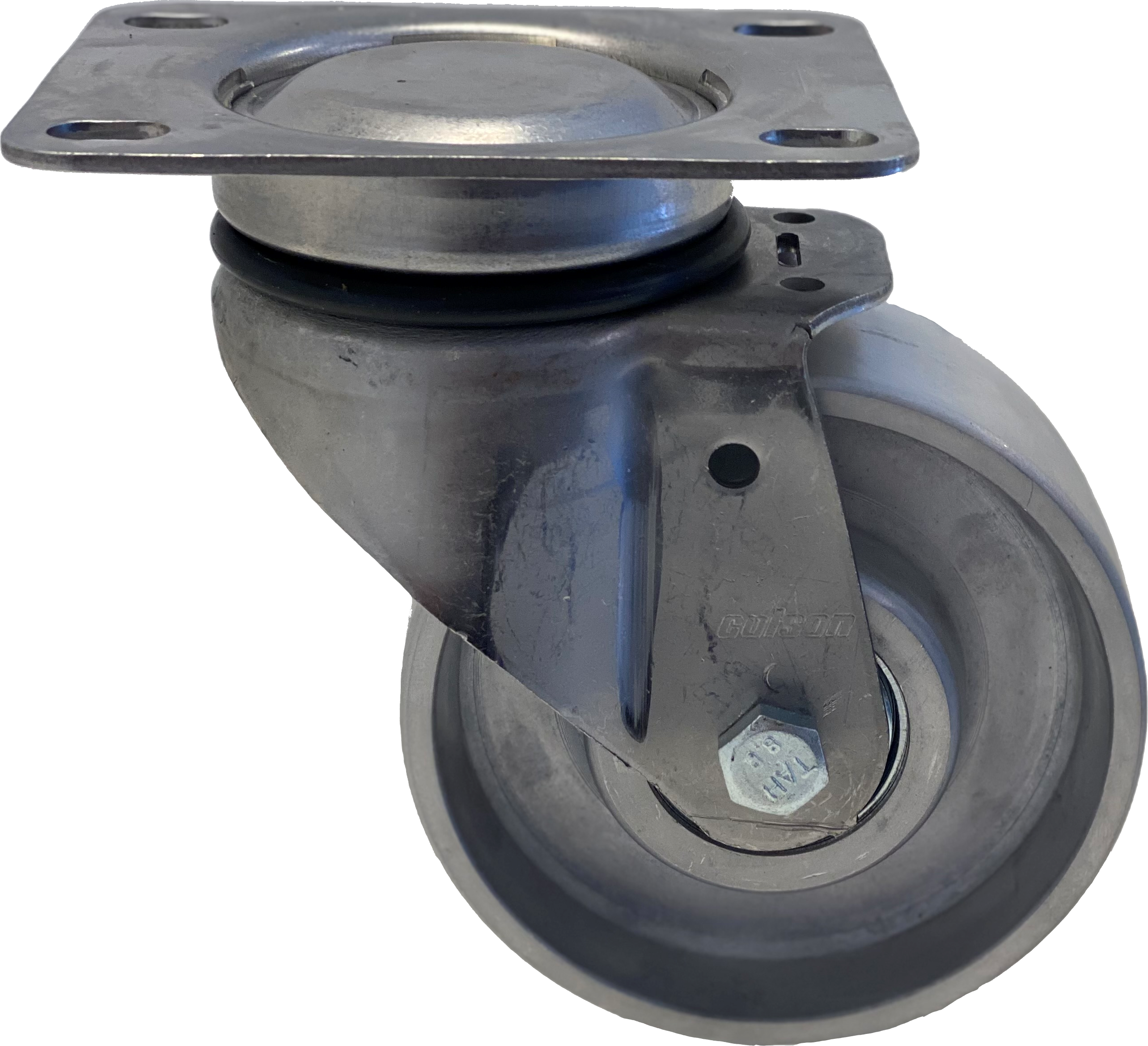

Swivel castor, 70 mm, 250 kg
Part number: JXAN 0702 6152
Technical data
| Diameter | 70 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 105 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 250 kg |
| Weight | 0.85 kg |
Technical description
- Swivel fork of deep drawn stainless steel. Swivelhead with
- sealed precision ball bearing, grease nippel and O-ring seal.
- In case of extreme conditions (like frequent jet cleaning) maintenance
- by relubrication is necessary
Wheel
- Aluminium wheel for intensive use,
- operating temperatures from -40° up to +300°C with 2 sealed ball bearings and a hollow shaft excellent resistance to wear, resistant to steam and water
