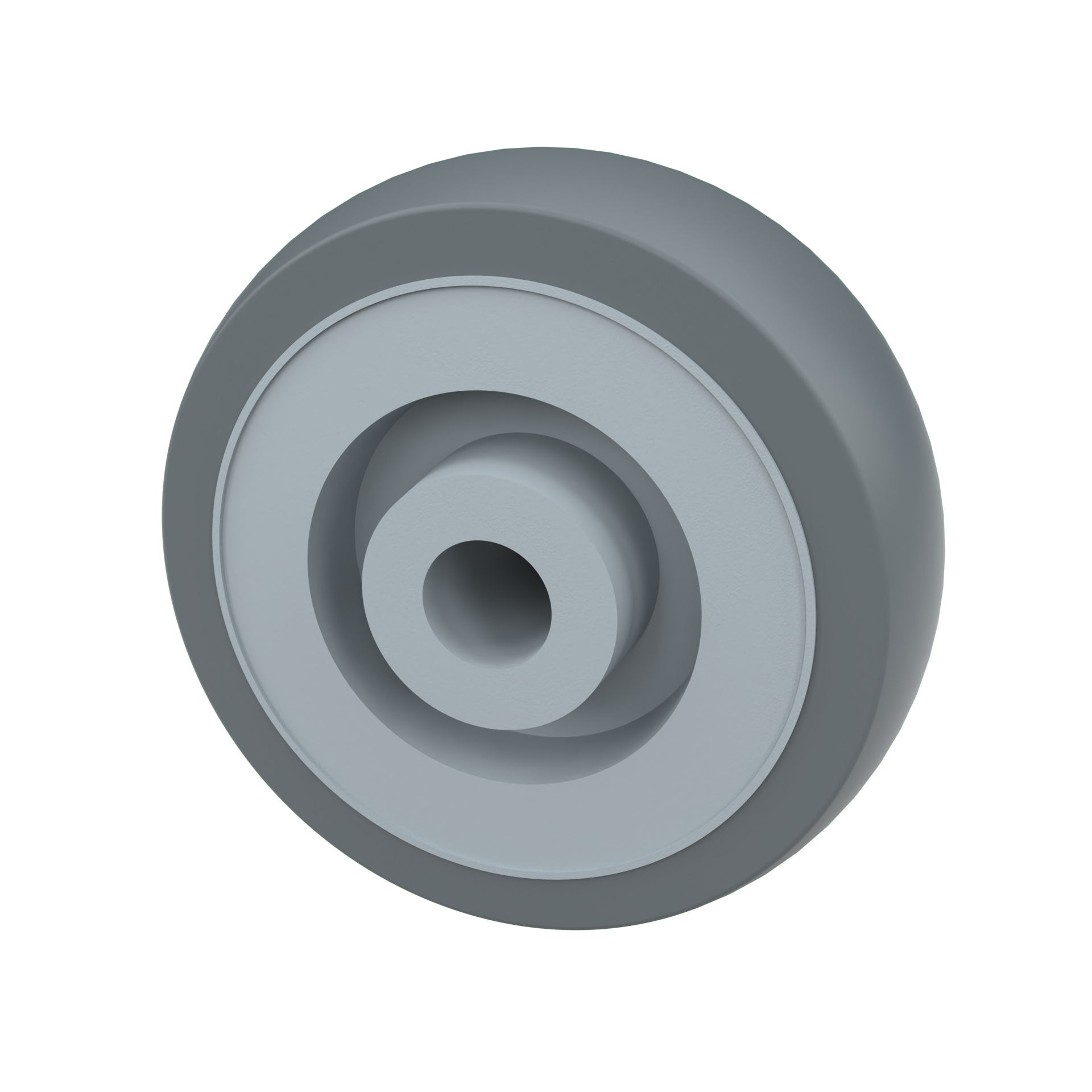

Wheel, 50 mm - 150 mm, 40 kg - 120 kg

Part number: 21G

Technical data

Diameter 50 mm
Tread width 18 mm
Hub length 21,5 mm
Wheel axle diameter 8 mm
Load capacity 40 kg



Wheel

  • TPE tread (Shore A 87)
  • polypropylene wheel body
  • thread guard
  • plain bearing
  • non-oiling
  • on request further variants available

Areas of application

  • diagnostic equipment
  • electronic equipment
  • food industry
  • food transport equipment
  • medical-technical equipment
  • transport trolleys

Variants

Diameter Tread width Hub length Wheel axle diameter Load capacity
50 mm 18 mm 21,5 mm 8 mm 40 kg
50 mm 18 mm 21,5 mm 8 mm 40 kg
75 mm 25 mm 26,5 mm 8 mm 60 kg
75 mm 25 mm 26,5 mm 8 mm 60 kg
75 mm 25 mm 28,8 mm 12 mm 60 kg
80 mm 32 mm 35,5 mm 12 mm 80 kg
100 mm 25 mm 28,5 mm 8 mm 80 kg
100 mm 32 mm 35 mm 12 mm 80 kg
125 mm 32 mm 35 mm 12 mm 100 kg
150 mm 32 mm 35 mm 12 mm 120 kg
Reach compliant
