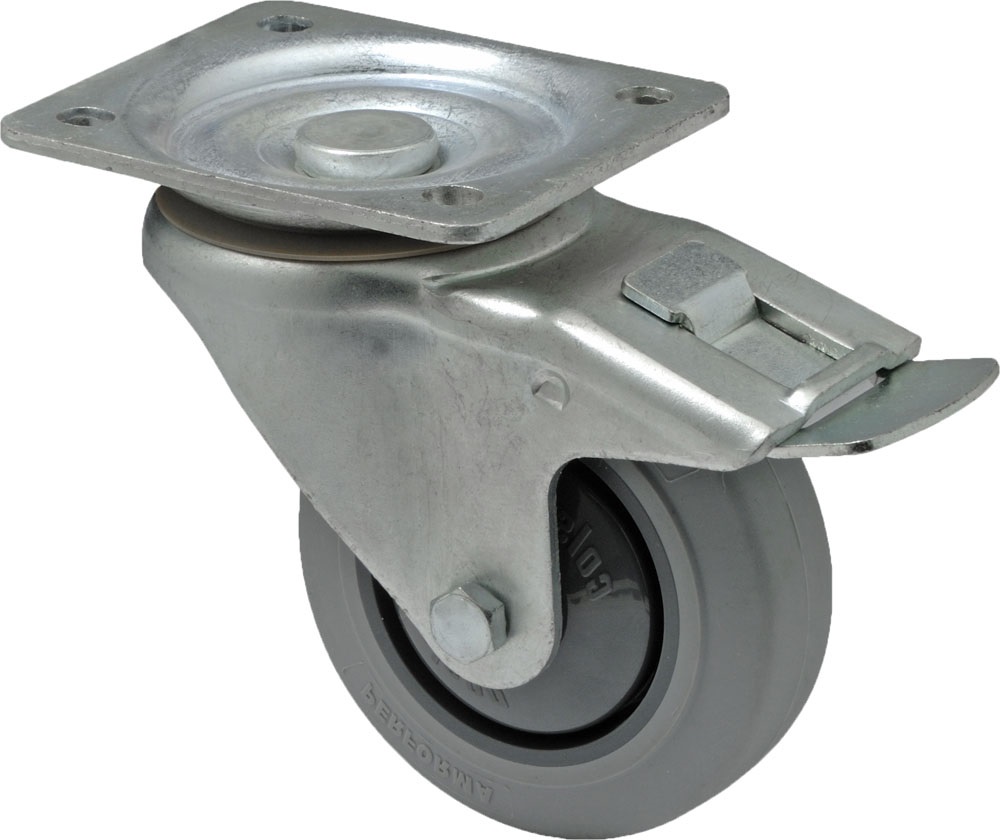

Swivel castor, 100 mm, 150 kg
Part number: DTPF 1002 5100
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Hub length | 50 mm |
| Height | 128 mm |
| Offset | 40 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77 x 60 mm |
| Brake swivel radius | 134 mm |
| Load capacity | 150 kg |
| Weight | 1.5 kg |
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel head with double ball race and sealring
- with directional lock
Wheel
- Dark grey Polypropyleene wheel with grey rubber tyre
- (Performa, Shore A 65 - 70) with one deep groove ball bearing
