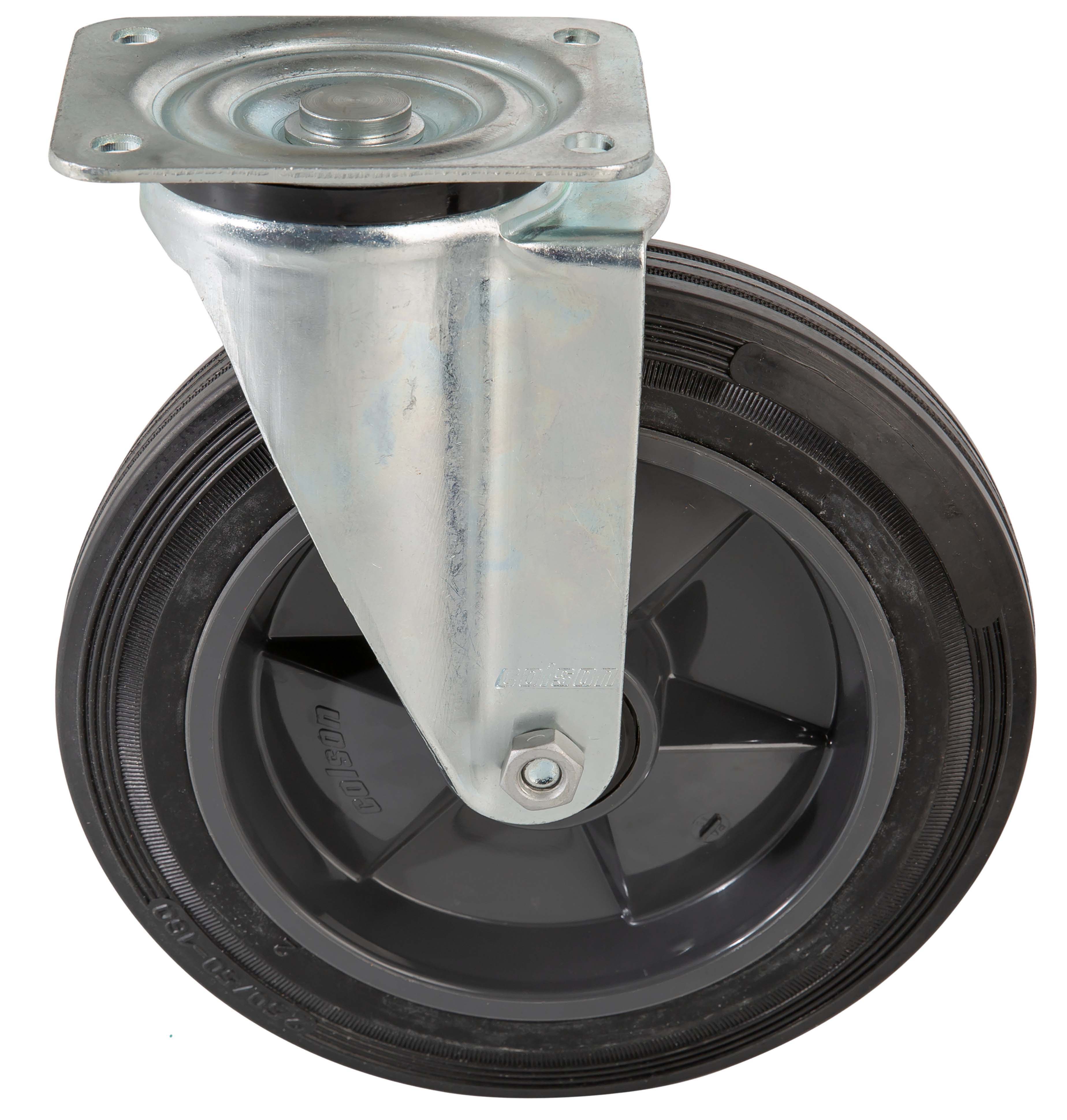

Swivel castor, 250 mm, 340 kg
Part number: JTPM 2503 6443
Technical data
| Diameter | 250 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 80/75 mm |
| Load capacity | 340 kg |
| Weight | 4.2 kg |
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivel bearing with double ball raceways and sealring an extra sturdy
- plate (4 mm) and fork legs (3.5 mm) for even higher load capacity
Wheel
- Polyamide wheel with black rubber tyre
- (Shore A 85) and two deep groove ball bearings
