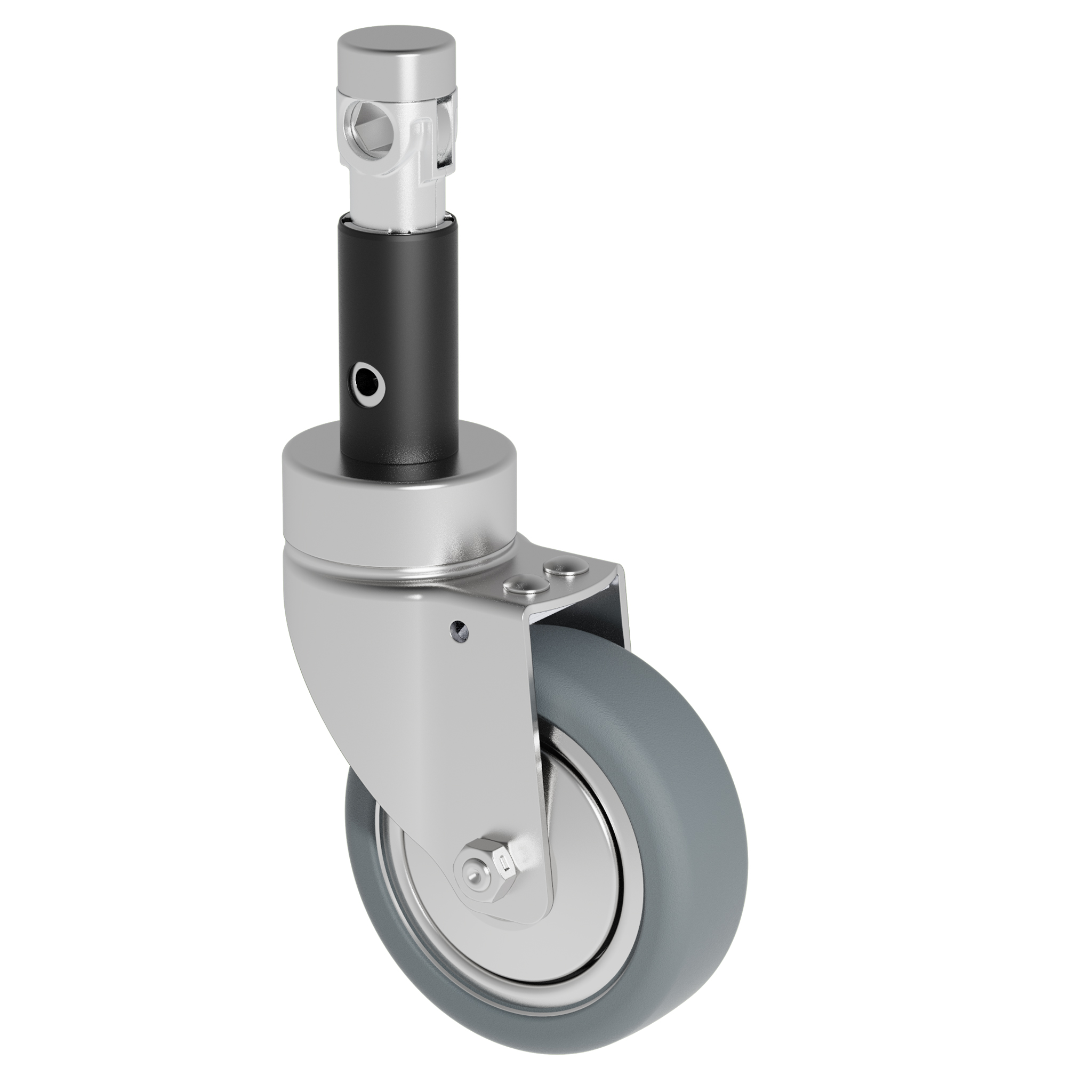

Swivel castor with central total brake, 100 mm - 200 mm, 80 kg - 120 kg
Part number: 391q 32C100b Z2351

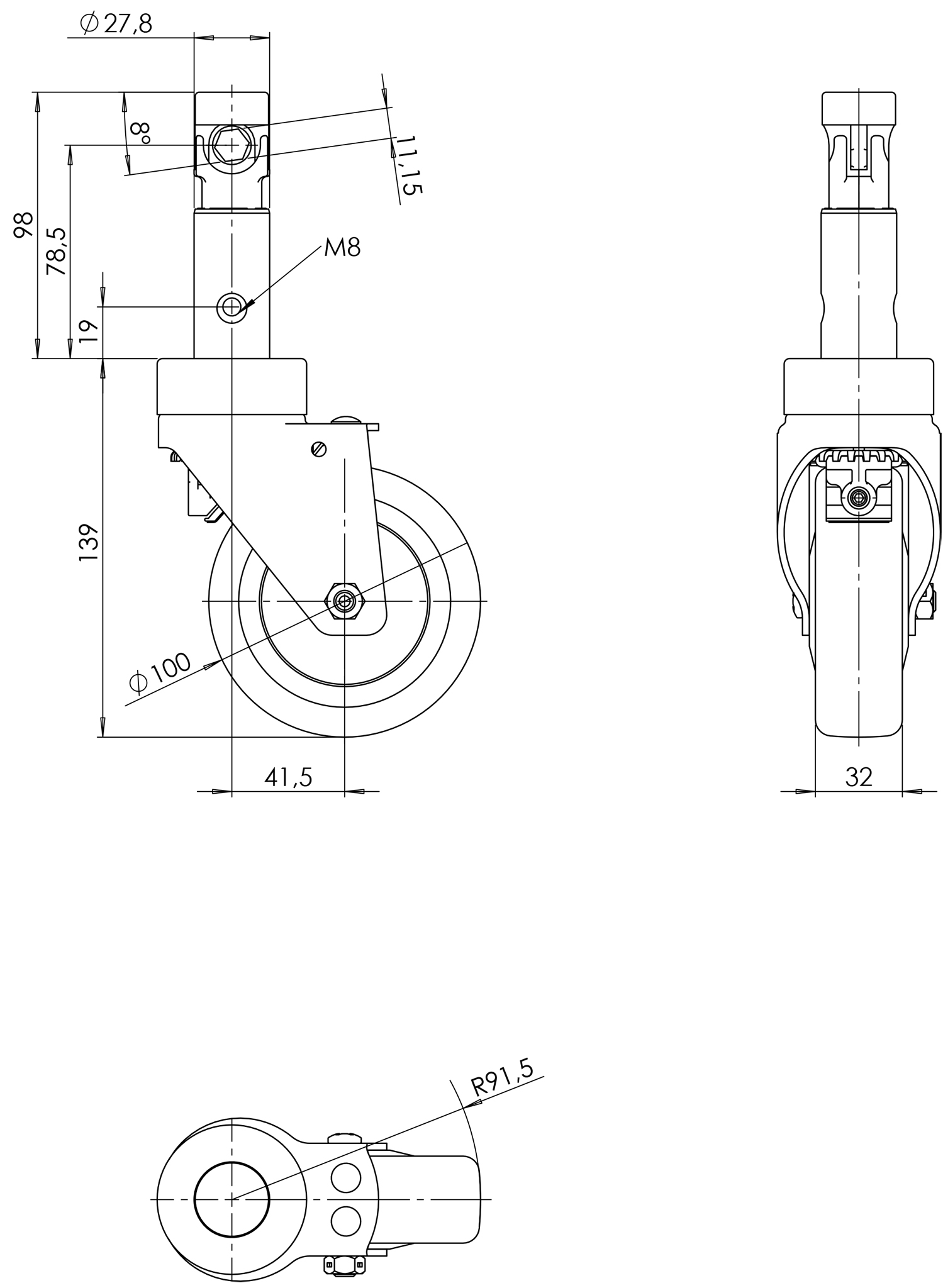

Technical data
| Diameter | 100 mm |
| Tread width | 32 mm |
| Height | 139 mm |
| Offset | 42 mm |
| Stem size | 27,8x100 (Standard Exzenter: 41° / 52°)mm |
| Load capacity | 80 kg |
Technical description
- sheet steel metal housing
- zinc passivated
- presicion ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- device to permit adjustment of the braking effect
- (without removing the castor or wheel)
- also available with other wheel variants
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
Variants
| Diameter | Tread width | Height | Offset | Stem size | Load capacity | |
|---|---|---|---|---|---|---|
| 391q 32C100b Z2351 | 100 mm | 32 mm | 139 mm | 42 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 80 kg |
| 391r 32C100b Z2351 | 100 mm | 32 mm | 139 mm | 42 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 80 kg |
| 391q 32C125b Z2351 | 125 mm | 32 mm | 164 mm | 44 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 100 kg |
| 391r 32C125b Z2351 | 125 mm | 32 mm | 164 mm | 44 mm | 27,8x100 (Standard Exzenter: 41° / 52°) mm | 100 kg |
| 391q 32C150b Z2351 | 150 mm | 32 mm | 191 mm | 51 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 120 kg |
| 391r 32C150b Z2351 | 150 mm | 32 mm | 191 mm | 51 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 120 kg |
| 391q 32C200b Z2351 | 200 mm | 32 mm | 243 mm | 61 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 120 kg |
| 391r 32C200b Z2351 | 200 mm | 32 mm | 243 mm | 61 mm | 27,8x100 (Standard Exzenter: 41° / 52°)mm | 120 kg |
