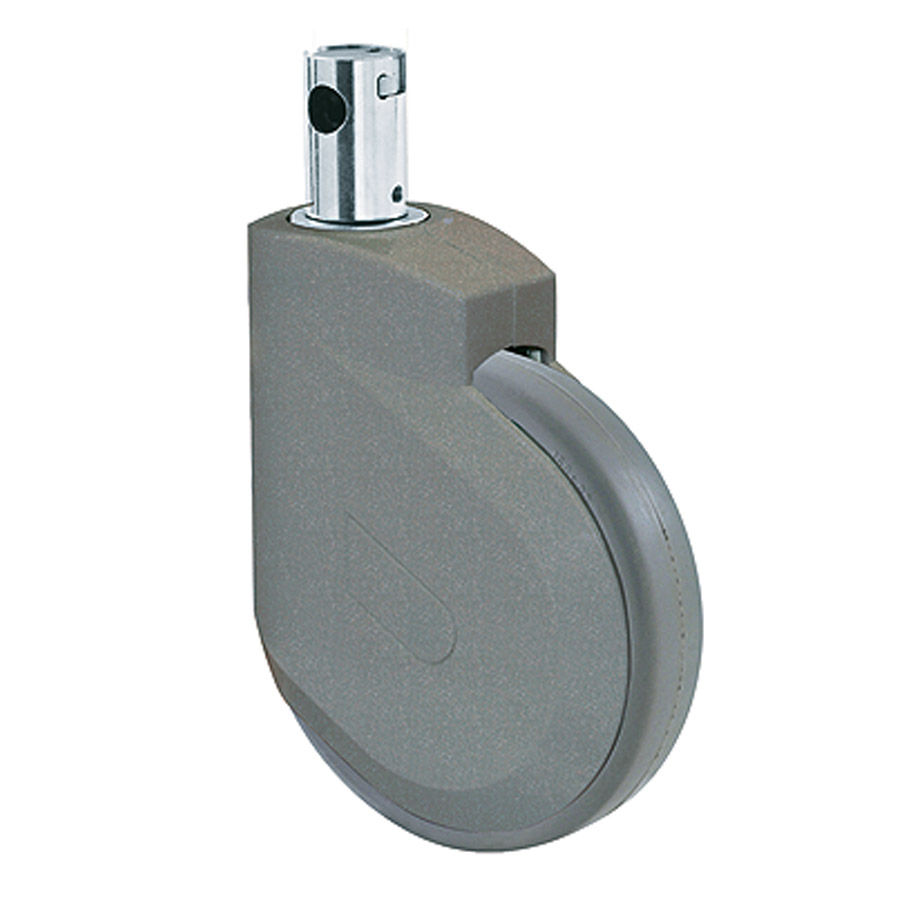

Swivel castor with central total brake, 125 mm - 200 mm, 100 kg - 120 kg
Part number: 390q 32C125b Z985NP CA
On request
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 158 mm |
| Offset | 44 mm |
| Load capacity | 100 kg |
Technical description
- sheet steel metal housing
- zinc passivated
- modern desing with high-quality plastic cover
- double ball bearing in swivel head
- protected from dust and water ingress by plastic sealing ring
- integrated selection mechanism with total locking brake "q"
- and directional locking brake "r"
- selection mechanism continually greased
- also available with other wheel variants
Wheel
- solid rubber tyre blue-grey (Shore A 80)
- sheet steel metal rim zinc passivated
- metal thread quard
- flange bearing
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
Variants
| Diameter | Tread width | Height | Offset | Load capacity | |
|---|---|---|---|---|---|
| 390q 32C125b Z985 CA | 125 mm | 32 mm | 158 mm | 44 mm | 100 kg |
| 390r 32C125b Z985 CA | 125 mm | 32 mm | 158 mm | 44 mm | 100 kg |
| 390q 32C150b Z985 CA | 150 mm | 32 mm | 184 mm | 51 mm | 110 kg |
| 390q 32C200b Z985 CA | 200 mm | 32 mm | 237 mm | 61 mm | 120 kg |
