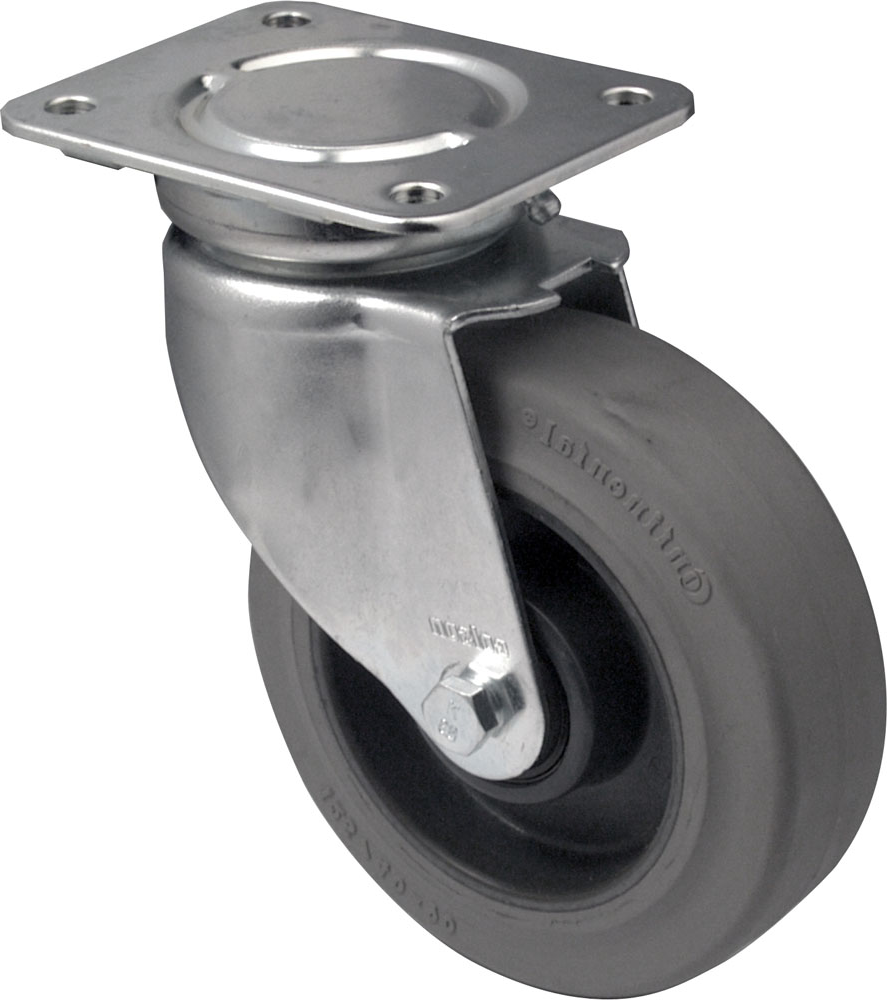

Swivel castor, 125 mm, 200 kg
Part number: JSRG 1252 6153
Technical data
| Diameter | 125 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 200 kg |
| Weight | 1.3 kg |
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision ball bearing and a grease nippel
Wheel
- Glass fibre reinforced polyamide wheel with grey rubber tyre
- (Shore A 65) with two deep groove ball bearings
