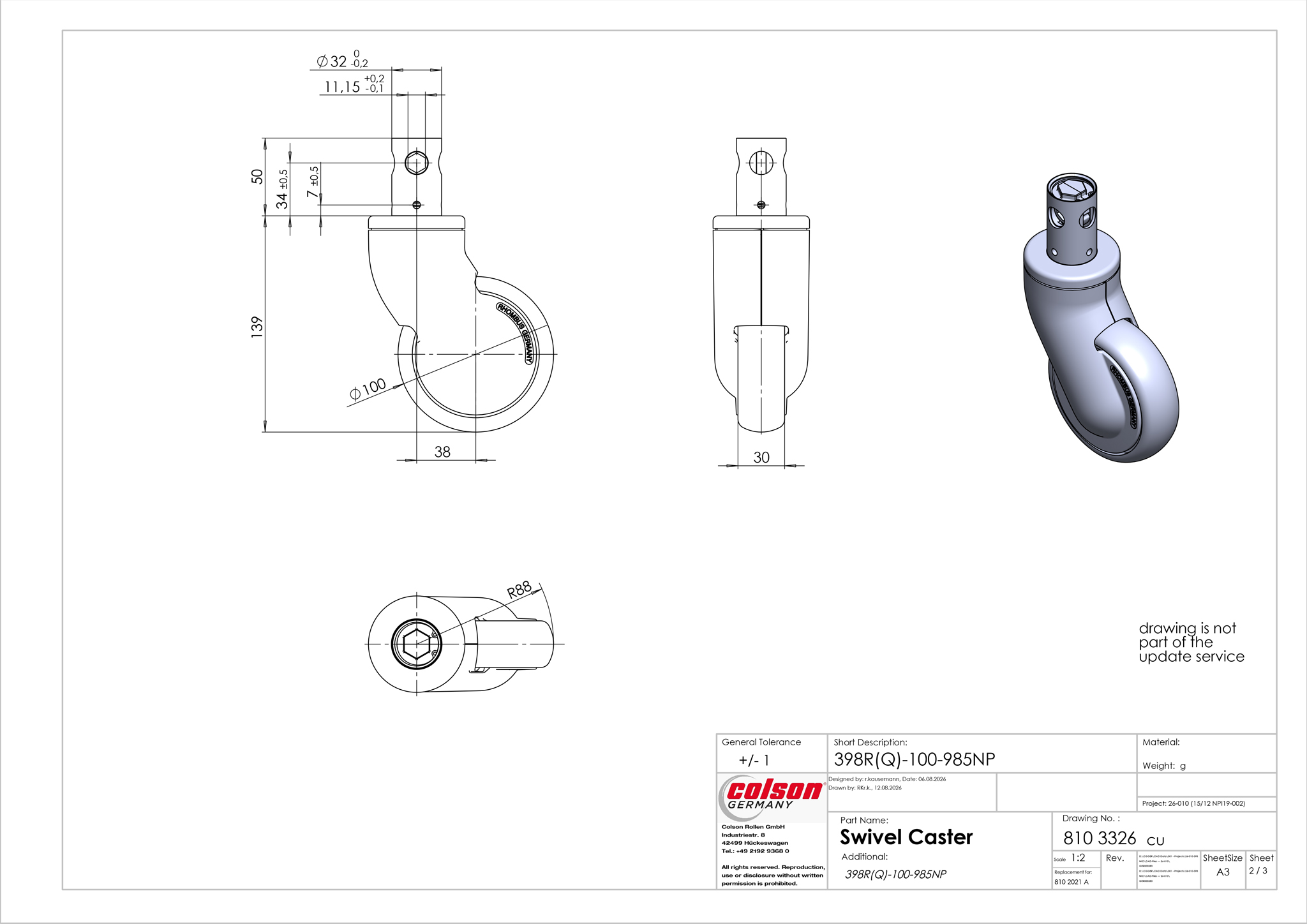

Swivel castor with central/directional total brake, 100 mm - 200 mm, 100 kg - 150 kg

Part number: 398r 29K100v K985NP (PRIMACY)

Technical data

Diameter 100 mm
Tread width 30 mm
Height 139 mm
Offset 38 mm
Load capacity 100 kg

Accessories & options

Technical description

  • die-cast aluminium load-bearing housing
  • highly polished plastic cover
  • precision ball bearings in the fork head
  • suitable for cleaning in disinfection cabins
  • smooth selection function
  • integrated selection mechanism with total locking brake "q"
  • and direction locking brake "r"
  • permanently grease filled in the switch mechanism
  • also available with electrically conductive wheel



Wheel

  • thermoplastic polyurethane tyre (TPU) iron grey RAL 7011 (Shore A 95)
  • plastic wheel centre and thread guard silver grey RAL7001
  • precision ball bearing

Areas of application

  • care beds
  • hospital beds
  • intensive care beds
  • medical equipment
  • op beds
  • op tables

Variants

Diameter Tread width Height Offset Load capacity
100 mm 30 mm 139 mm 38 mm 100 kg
100 mm 30 mm 139 mm 38 mm 100 kg
398q 29K125v K985 125 mm 32 mm 158 mm 40 mm 150 kg
398r 29K125v K985 125 mm 32 mm 158 mm 40 mm 150 kg
398q 29K150v K985 150 mm 32 mm 188 mm 42 mm 150 kg
398r 29K150v K985 150 mm 32 mm 188 mm 42 mm 150 kg
398q 37K200v K985 200 mm 32 mm 229 mm 56 mm 150 kg
398r 37K200v K985 200 mm 32 mm 229 mm 56 mm 150 kg
Reach compliant
Map
Rohs compliant
